点击放大查看
13382-10PG-331
| Manufacturer | |
| Description | Standard Circular Connector MAXI-CON CABLE #16 SOLDER Conn Field Installable PIN 10 POS Solder ST Cable Mount 10 Terminal 1 Port Standard Circular Connectors MAXI-CON CABLE #16 SOLDER CONN PLUG 10POS CABLE PIN CIRCULAR CONNECTOR PLUG SIZE 16, 10POS, CABLE MAXI-CONCABLE#16SOLDER |
| Category |
Business
| Tradename | Maxi-Con-X | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 1.35 A to 23 A |
Mechanical
| Weight | 0 | Diameter | 26.9 |
| Packaging | Bulk | Cable Exit | No |
| Wire Gauge | 18-16 | Orientation | Keyed |
| Termination | Solder | Contact Type | 10Signal |
| Mounting Type | Cable Mount | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Fastening Type | Bayonet Lock |
| Mounting Style | Wire | Insertion Angle | :16-10 |
| Material - Body | :Nylon (Polyamide) | Contact Material | Brass |
| Length - Overall | 63.5 | Termination Style | Solder |
| 1st Contact Gender | PIN | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Material, Finish | Nylon |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Field Installable | Gender | :Plug |
| Series | Maxi-Con-X | Features | Cable Clamp |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | Weathertight | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts
14381-10SG-300
Conxall / Switchcraft
Standard Circular Connector MAXI-CON PANEL #16 PC TAIL Conn Field Installable SKT 10 POS Solder ST Panel Mount 10 Terminal 1 Port CONN RCPT 10POS PNL MNT SKT Conn;Cir;CPC;Plastic;CableSocket;10Cnts;Maxi-Con-X;PCTail;#16Sockets
14382-10SG-300
Conxall / Switchcraft
Standard Circular Connector 10P SOCKET PANEL MNT W/ HEX NUT & GSKT Standard Circular Connectors 10P SOCKET PANEL MNT W/ HEX NUT & GSKT CONN RCPT 10POS PNL MNT SKT 10 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts MAXI-CON-X Series Conn Field Installable SKT 10 POS Solder ST Panel Mount 10 Terminal 1 Port CIRCULAR CONNECTOR RCPT SIZE 16, 10POS, PANEL Conn;Cir;CPC;Plastic;CableSocket;10Cnts;Maxi-Con-X;Solder;#16Sockets Switchcraft MAXI-CON-X 系列 10路 面板安装 直向 连接器 插座 , 母触点
14380-10SG-300
Conxall / Switchcraft
Standard Circular Connector MAXI-CON PANEL #16 CRIMP Conn Field Installable SKT 10 POS Crimp ST Panel Mount 10 Terminal 1 Port Standard Circular Connectors MAXI-CON PANEL #16 CRIMP CONN RCPT 10POS PNL MNT SKT Maxi-Con-XPanelMnt,#16contact,crimp,10socket,withhexnutandgasket

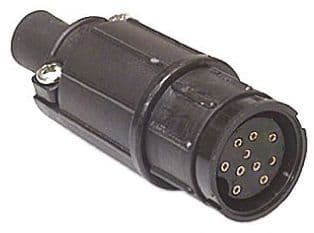

15382-10SG-326
