点击放大查看
6282-4SG-3DC
| Manufacturer | |
| Description | Standard Circular Connector 4P SOCKET CBL END DAISY CHAIN GRMMT Conn Field Installable SKT 4 POS Solder Cup ST Cable Mount 4 Terminal 1 Port CONN PLUG 4POS CABLE SKT Connector;#2;SolderCup;4;Socket;GoldoverNickel(Standard);600V;Nylon |
| Category |
Business
| Tradename | Mini-Con-X | Product Category | Standard Circular Connector |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Voltage Rating | 600V | ||
Mechanical
| Diameter | 18.2 | Packaging | Bulk |
| Cable Exit | No | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder Cup |
| Contact Type | 4Signal | Mounting Type | Cable Mount |
| Shell Plating | Gold over Nickel | Connector Type | Plug, Female Sockets |
| Contact Finish | Gold Over Nickel | Fastening Type | Bayonet Lock |
| Mounting Style | Free Hanging | Contact Material | Brass |
| Length - Overall | 33.4 | Termination Style | Solder Cup |
| 1st Contact Gender | SKT | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Material, Finish | Nylon |
Product Info
| Type | Field Installable | Series | Mini-Con-X |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | Weathertight | Operating Temperature | -40°C ~ 115°C |
Documents & Media
Similar Parts
8282-4PG-519
Conxall / Switchcraft
Standard Circular Connector MINI-CON CBL-CBL #20 SOLDER Conn Field Installable PIN 4 POS Solder Cup ST Cable Mount 4 Terminal 1 Port CONN RCPT 4POS CABLE PIN MINI-CONCABLE-CABLE#20SOLDER
8282-4PG-315
Conxall / Switchcraft
Standard Circular Connector MINI-CON CBL-CBL #20 SOLDER Conn Field Installable PIN 4 POS Solder Cup ST Cable Mount 4 Terminal 1 Port CONN RCPT 4POS CABLE PIN MINI-CONCABLE-CABLE#20SOLDER
8280-4PG-516
Conxall / Switchcraft
Standard Circular Connector MINI-CON CBL-CBL #20 CRIMP Conn Field Installable PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN RCPT 4POS CABLE PIN MINI-CONCABLE-CABLE#20CRIMP
7280-4PG-300
Conxall / Switchcraft
Standard Circular Connector MINI-CON PAN MT #20 CRIMP Conn Field Installable PIN 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CONN RCPT 4POS PNL MNT PIN MINI-CONPANELMT#20CRIMP

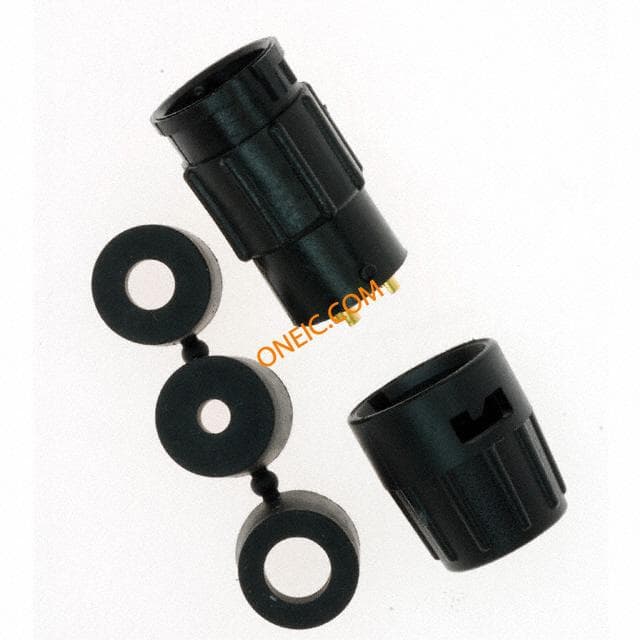

8282-4PG-3DC
