7292-6PG-3ES

Manufacturer	Switchcraft, Inc.
Description	Standard Circular Connector MINI-CON PAN MT #20 PC TAIL Conn Field Installable PIN 6 POS Solder ST Thru-Hole 6 Terminal 1 Port CONN RCPT 6POS PNL MNT PIN MINI-CONPANELMT#20PCTAIL
Category	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

工厂包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Supplier Unconfirmed

电气参数

额定电压

600V

最大额定电流

4.8 A to 13 A

机械参数

深度	20.6	高度	23.5
直径	23.5	包装方式	Bulk
出线方向	No	导线线规	24-20
方向	Keyed	端接方式	Solder
触头类型	6Signal	安装类型	Through Hole
连接器类型	Receptacle, Male Pins	接触镀层	Gold Over Nickel
紧固类型	Bayonet Lock	安装样式	Panel
触头材料	Brass	端接样式	Solder Tail
第一触头极性	PIN	触点数	6
位数	6	外壳材料及表面处理	Nylon

产品信息

类型	Field Installable	系列	Mini-Con-X
产品子类型	Connectors

环境参数

防护等级

Weathertight

工作温度

-40°C ~ 115°C

Documents & Media

PDF Document

Mini-Con-X Connectors

相关型号

暂无图片

6293SP

Conxall / Switchcraft

Standard Circular Connector MINI-CON GASKET-SPC MINI-CON-X GASKET - SPECIAL MINI-CON-XGASKET-SPECIAL

¥2.7676

详情

暂无图片

6282-6SG-315

Conxall / Switchcraft

Standard Circular Connector 6P SOCKET CABLE END Conn Field Installable SKT 6 POS Solder Cup ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS CABLE SKT MINI-CONCABLE#20SOLDER

¥297.1532

详情

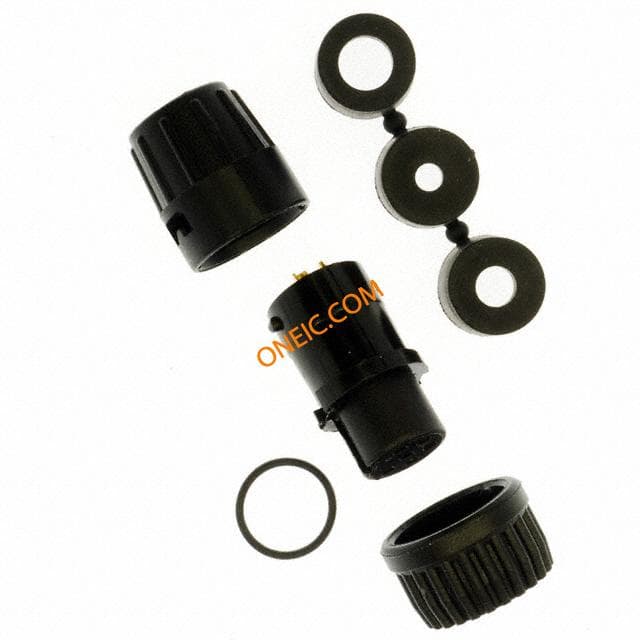

6282-6SG-3DC
