点击放大查看
SF6282-2SG-520
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Mini-Con-X | Product Category | Standard Circular Connector |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 600VAC/DC | Current Rating (Max) | 7.5A |
Mechanical
| Outline | 19.3mm | Diameter | 19.3 |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 19.3mm | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder Cup |
| Contact Type | 2Signal | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Connector Type | Plug, Female Sockets |
| Contact Finish | Gold Over Nickel | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Shell Material | Metal |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Length - Overall | 50.8 | Termination Rows | 焊接 |
| Termination Style | Solder Cup | 1st Contact Gender | SKT |
| Number of Contacts | 2 | Number of Positions | 2 |
| Shell Material, Finish | Copper, Nickel Plated | Static Discharge Shielding | 是 |
Product Info
| Type | Circular | Gender | Female |
| Series | MINI-CON-X | Features | Cable Clamp, Shielded |
| Product Type | Connectors | ||
Environmental
| Seal Rating | IP66, IP68 | Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 115°C | ||
Documents & Media
PDF Document
Similar Parts
6283-513
Conxall / Switchcraft
$3.9644
Details
6283-522
Conxall / Switchcraft
$5.3720
Details
6282
Conxall / Switchcraft
$2.0645
Details

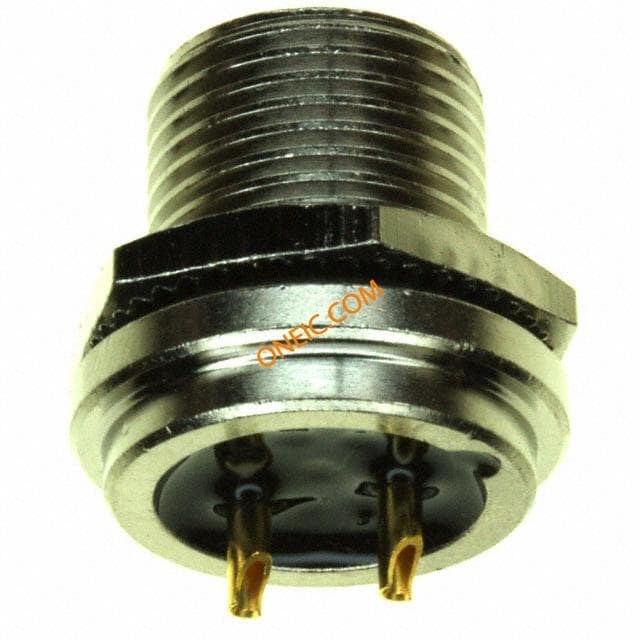

SF7282-2PG-3ES
