550C402T450DP2B
| Manufacturer | |
| Description | CAP ALUM 4000UF 450V SCREW Cornell-Dubilier 4000μF -10 to +50% 19.2mΩ 450V dc Panel Mount Aluminium Electrolytic Capacitor DP Cap Aluminum 4000uF 450V -10% to 50% (76.2 X 149.23mm) Clamp Mount Metal Can 0.019 Ohm 21800mA 10000 hr 105C CAPACITOR ALUM ELEC, 4000µF, 450V, SCREW Capacitor;AlElectrolytic;Cap4000uF;ScewTerminal;Vol-Rtg450V;76.2X149.23mm |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 00000000 |
| Rad Hardened | No | ||
Electrical
| Voltage | 450 V dc | Tolerance | -10 → +50% |
| Capacitance | 4000µF | Voltage Rating | 450VDC |
| Resistance Tolerance | -10% | Ripple Current @ High Frequency | 21.8A |
| ESR (Equivalent Series Resistance) | 19.2mΩ | Voltage - Protection Level (VP) (2416) | 500VDC |
Mechanical

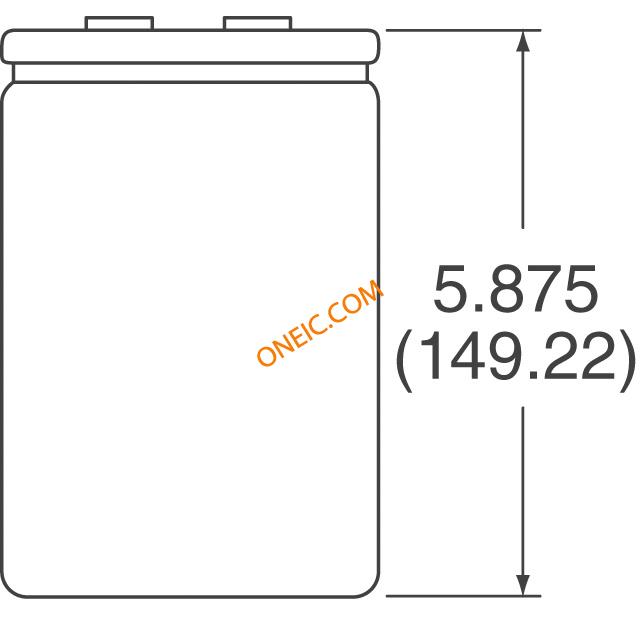

| Size | 76.2 X 149.23 | Depth | Not Required mm |
| Height | 179.23mm | Weight | 0 |
| Diameter | 76.2mm | Termination | ScrewTerminal |
| Construction | Cylindrical | Height (Max) | Not Required mm |
| Lead Spacing | Not Required mm | Pitch - Post | 31.75mm |
| Mounting Type | Panel Mount | Mounting Style | Clamp Mount |
| Package / Case | DP | Length - Overall | Not Required mm |
| Material - Blade | AluminumElectrolytic | Size / Dimension | 76.2 Dia. x 179.23mm |
| Diameter - Small Outside | Not Required mm | ||
Product Info
| Type | Electrolytic | Failure Rate | Not Required |
| Electrical Life | 10000h | ||
Environmental
| Operating Temperature | +105°C | ||
