550C442T450FE2D
| Manufacturer | |

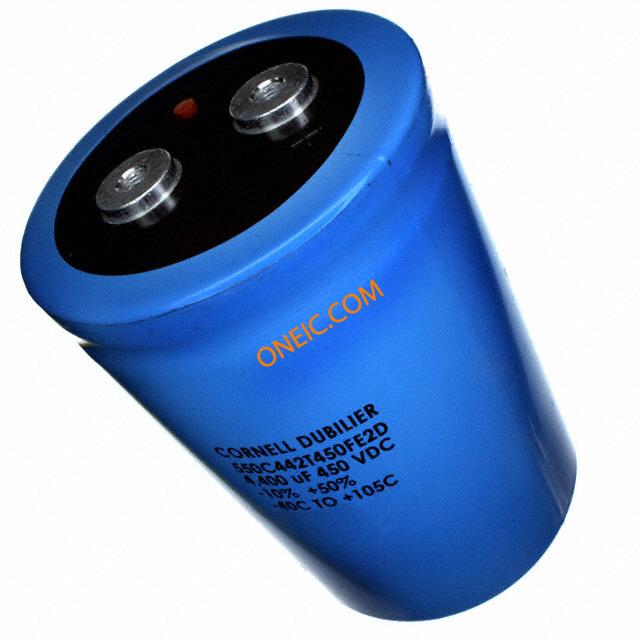

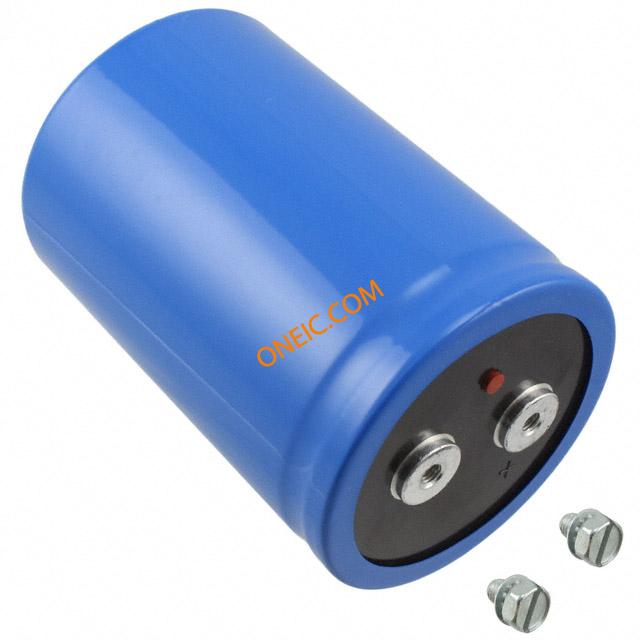

| Description | CAP ALUM 4400UF 450V SCREW Cornell-Dubilier 4400μF -10 to +50% 17mΩ 450V dc Panel Mount Aluminium Electrolytic Capacitor FE Cap Aluminum 4400uF 450V -10% to 50% (88.9 X 130.18mm) Clamp Mount Metal Can 0.017 Ohm 24300mA 10000 hr 105C Capacitor;AlElectrolytic;Cap4400uF;ScewTerminal;Vol-Rtg450V;88.9X130.18mm |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | Rad Hardened | No |
Electrical
| Voltage | 450 V dc | Tolerance | -10 → +50% |
| Capacitance | 4400µF | Voltage Rating | 450VDC |
| DC Cold Resistance | 4000 uA | Resistance Tolerance | -10% |
| Ripple Current @ High Frequency | 24.3A | ESR (Equivalent Series Resistance) | 17mΩ |
| Voltage - Protection Level (VP) (2416) | 500VDC | ||
Mechanical

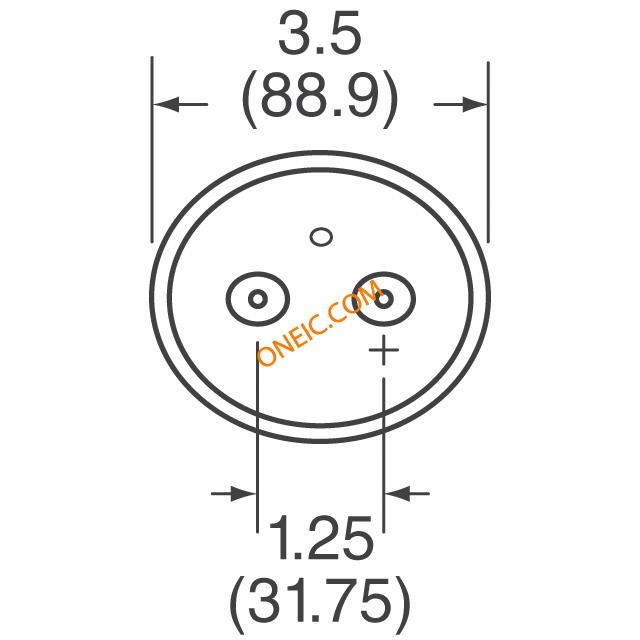

| Size | 88.9 X 130.18 | Depth | Not Required mm |

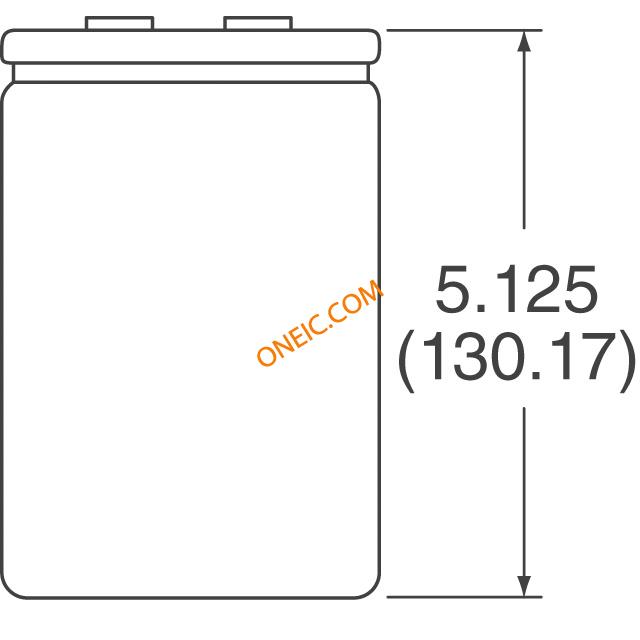

| Height | 130.18mm | Diameter | 88.9mm |
| Termination | ScrewTerminal | Construction | Cylindrical |
| Height (Max) | Not Required mm | Lead Spacing | Not Required mm |
| Pitch - Post | 31.75mm | Mounting Type | Panel Mount |
| Mounting Style | Clamp Mount | Package / Case | FE |
| Length - Overall | Not Required mm | Material - Blade | AluminumElectrolytic |
| Size / Dimension | 88.9 Dia. x 130.18mm | Diameter - Small Outside | Not Required mm |
Product Info
| Type | Electrolytic | Failure Rate | Not Required |
| Electrical Life | 10000h | ||
Environmental
| Operating Temperature | +105°C | ||
