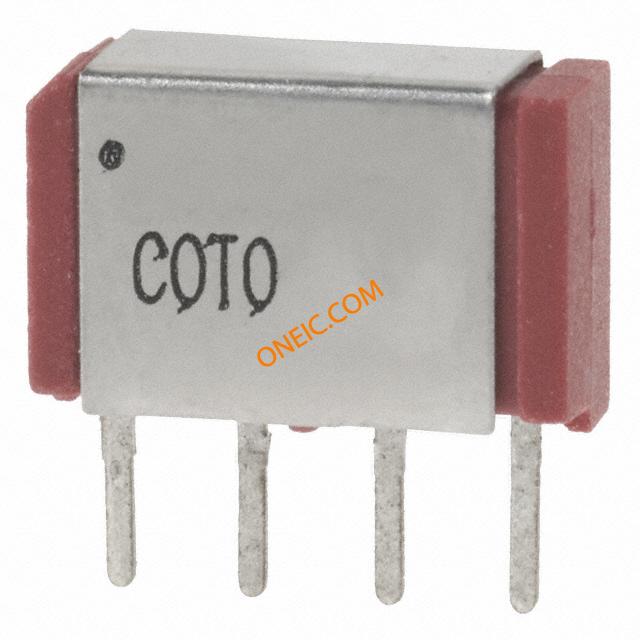

点击放大查看
对参数有疑问？问 AI 助手
Business
| Standard Package | 39 | Factory Pack Quantity | 40 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Coil Type | Non Latching | Coil Current | 16mA |
| Release Time | 0.1ms | Coil Resistance | 750 Ohms |
| Voltage - Supply | 12VDC | Switching Voltage | 100VAC, 100VDC - Max |
| Vgs(th) (Max) @ Id | 1 VDC | Current - Switching | 0.25 Amps |
| Diode Configuration | Yes | Voltage - Off State | 1 VDC |
| Vce(on) (Max) @ Vge, Ic | 9 VDC | Contact Rating (Current) | 250mA |
| Contact Rating @ Voltage | 0.25A @ 100 VAC/DC | Drive Voltage (Max Rds On, Min Rds On) | 9 VDC |
Mechanical
| Packaging | Tube | Contact Form | 1 Form A (SPST-NO) |
| Mounting Type | Through Hole | Contact Material | Ruthenium |
| Termination Style | PC Pin | Contact Layout, Typical | 1A SPST-NO |
Product Info
| Form | SIP | Type | Relays |
| Series | MINI | Features | Diode, Magnetic Shield |
| Relay Type | Reed | Card Standard | Reed Relay |
Environmental
| Operate Time | 0.35ms | Operating Temperature | -20°C ~ 85°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- 9011, 9012, 9117 Series
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
