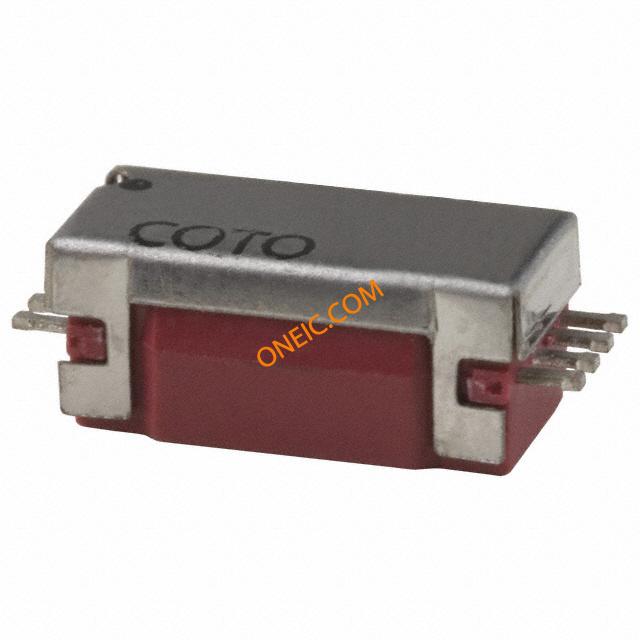

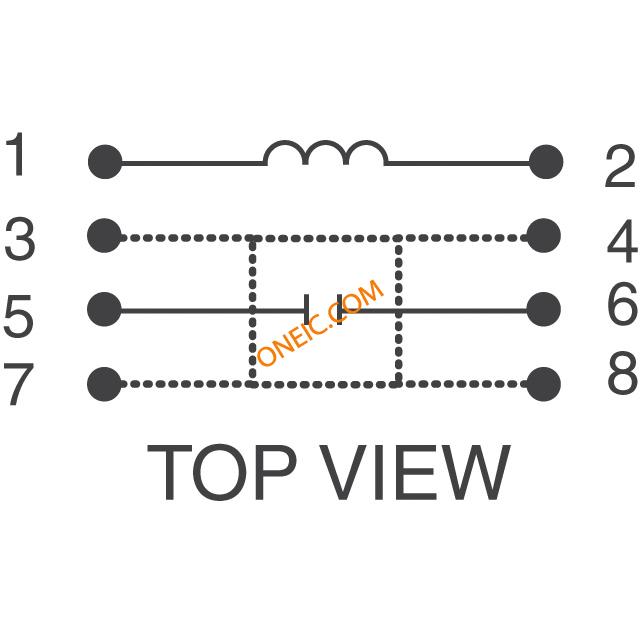

9814-05-10
| Manufacturer | |
| Description | Reed Relays REED RELAY SIP SPST 12V MAG SHLD RELAY RF SPST 250MA 5V RELAY, REED SPST 5VDC Reed Relays Coil Voltage: 5 VDC Contact Configuration : 1A SPST-NO Mounting : Surface Mount - Axial Switching Current : 0.25 Amps Switching Voltage: 100 Volts |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 98 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85364900 | Approval Agency | :UL |
Electrical
| Coil Type | Non Latching | Power - Max | :3W |
| Coil Current | 33.3mA | Release Time | 0.05ms |
| Coil Resistance | 150 Ohms | Voltage - Supply | 5 V |
| Switching Voltage | 100VAC, 100VDC - Max | Contact Resistance | :125mohm |
| Vgs(th) (Max) @ Id | 0.4 VDC | Current - Switching | :250mA |
| Dielectric Strength | :1500V | Diode Configuration | N/A |
| Current Rating (Max) | 0.25 A | Must Operate Voltage | :3.8VDC |
| Must Release Voltage | :0.4VDC | Insulation Resistance | :1000Gohm |
| Vce(on) (Max) @ Vge, Ic | 3.8 VDC | Contact Rating (Current) | 250mA |
Mechanical
| Depth | :4.95mm | Width | :10.16mm |
| Length | :4.31mm | Weight | 0.004 |
| Packaging | Tube | Contact Form | 1 Form A (SPST-NO) |
| Height (Max) | :4.31mm | Lead Spacing | :1.02mm |
| Pitch - Post | :12.06mm | Mounting Type | Surface Mount |
| Number of Pins | :8 | Contact Material | Ruthenium |
| Termination Style | Axial | Contact Layout, Typical | :SPST-NO |
Product Info
| Form | SMD/SMT | Type | :Axial |
| Series | 9800 | Features | Magnetic Shield |
| Relay Type | RF | ||
Environmental
| Operate Time | 0.25ms | Operating Temperature | -20°C ~ 85°C |
