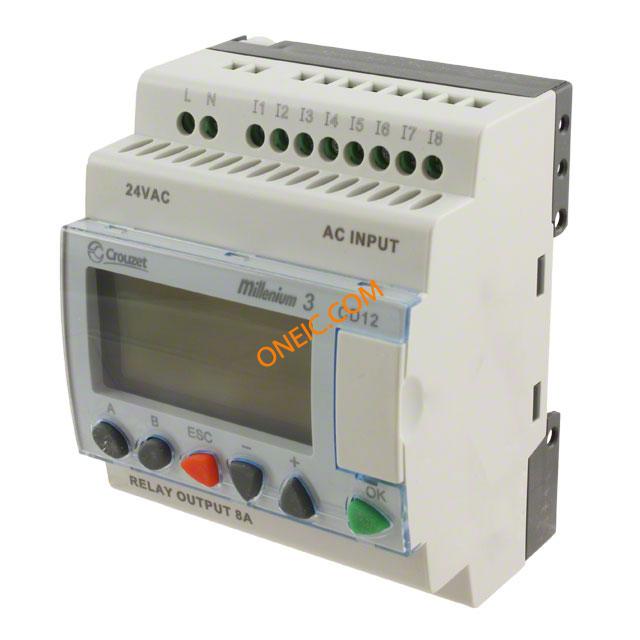

88970044
| Manufacturer | |
| Description | Controllers MILL 3 CD12 8-4 24VAC CONTROL LOGIC 12 I/O 24VDC Millenium3,CD12Controller,LCDDisplay,24VAC,8Input,4RelayOuput |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 646-1098 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | UL,CSA |
| Approval Agency | CSA, GL, UL | ||
Electrical
| Memory | EEPROM | Output | Relay |
| Indicator | Yes | Input Type | Digital |
| Memory Size | 368 bits/200 words | Output Type | 4 x SPST NO |
| Display Type | LCD | Response Time | 10ms Make, 5ms Release |
| Voltage - Supply | 24 VAC | Number of Outputs | 4 |
| Number of Outputs and Type | 4 - Relay | ||
Mechanical
| Size | 107.6 mm x 71.2 mm x 68 mm | Height | 2.28" (58mm) |
| Termination | Screw | Mounting Type | DIN Rail |
| Mounting Style | DINRail/Panel | Primary Material | Controller |
| Size / Dimension | 71.2mmL×90mmH×59.5mmD | Terminal Block Type | Screw |
Product Info
| Type | Compact Range | Series | Millenium 3 |
| Software | M3 | Expandable | No |
| Manufacturer | CD12Series | Other Specifications | Yes - Lithium |
| Number of Inputs and Type | 8 - Digital | ||
Environmental
| Mechanical Life | Obsolete | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 55°C | ||
