88970053
| Manufacturer | |

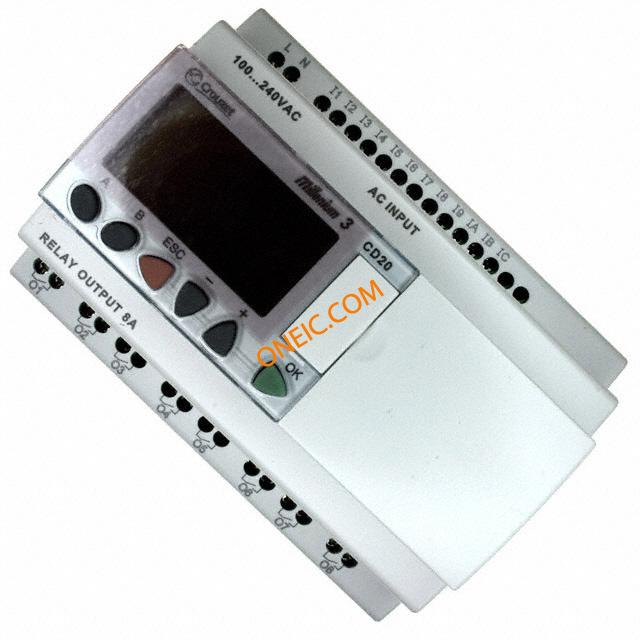

| Description | Controllers MILL 3 CD20 12-8 100-240VAC CONTROL LOG 20 I/O 100-240VAC Millenium3,CD20Controller,LCDDisplay,100-240VAC,12Input,8RelayOutput |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 646-1101 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | UL,CSA |
| Approval Agency | CSA, GL, UL | ||
Electrical
| Memory | EEPROM | Output | Relay |
| Indicator | Yes | Input Type | Digital |
| Memory Size | 368 bits/200 words | Display Type | LCD |
| Response Time | 10ms Make, 5ms Release | Voltage - Supply | 100 V to 240 V |
| Number of Outputs | 8 | Number of Outputs and Type | 8 - Relay |
Mechanical
| Size | 107.6 mm x 124.6 mm x 68 mm | Height | 2.28" (58mm) |
| Termination | Screw | Mounting Type | DIN Rail |
| Mounting Style | DINRail/Panel | Primary Material | Controller |
| Size / Dimension | 124.6mmL×90mmH×59.5mmD | Terminal Block Type | Screw |
Product Info
| Type | Compact Range | Software | M3 |
| Expandable | No | Manufacturer | CD20Series |
| Other Specifications | Yes - Lithium | Number of Inputs and Type | 12 - Digital |
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 55°C | ||
