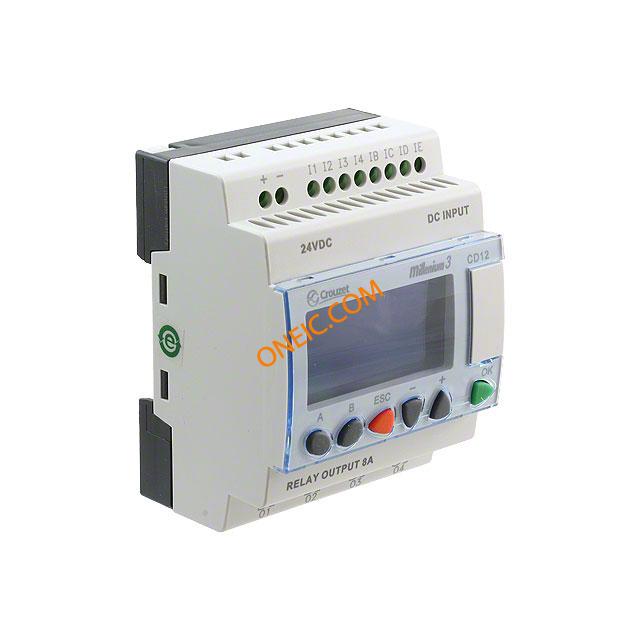

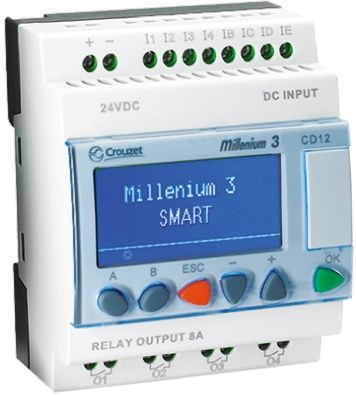

88974042
| Manufacturer | |
| Description | Controllers M3 CUSTOM CD12ST 8/4 24VDC PNP CONTROL LOGIC 12 I/O 24VDC MILLENIUM 3 SMART CD12 - 8I/4O S 24VDC Controller,Logic,M3Custom,8DigitalIn/4RelayOut,24VDCPNP,CD12ST Crouzet Millenium 3 逻辑控制, 8 x 输入, 4 x 输出, 24 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 88974042-ND | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | CE, CSA, UL |
Electrical
| Memory | 368(DataMemory)Bits | Output | Relay |
| Indicator | Yes | Interface | Front Panel |
| Input Type | Digital | EEPROM Size | 368 bits |
| Memory Size | 368 bits/200 words | Output Type | Relay |
| Display Type | LCD Display | Response Time | 10ms Make, 5ms Release |
| Operating Mode | Program | Current - Output | 0.5 A |
| Number of Inputs | 8 | Voltage - Supply | 24 VDC |
| Number of Outputs | 4 | Program Memory Size | 368 bits |
| Current Rating (Max) | 12 A | Number of Outputs and Type | 4 - Solid State (1 - PWM) |
Mechanical
| Size | 90 mm x 71.2 mm x 58 mm | Depth | 68mm |
| Width | 71.2mm | Height | 2.28" (58mm) |
| Length | 100mm | Mounting Type | DIN Rail |
| Mounting Style | DINRail | ||
Product Info
| Type | Compact Range | Series | Millenium 3 |
| Features | Memory back-up using EEPROM or battery | Includes | Yes |
| Language | 梯形逻辑 | Software | M3 |
| Expandable | No | CAD Drawing | 3D CAD 模型 |
| Manufacturer | 889Series | Programmable | FBD, Ladder Logic, SFC |
| Adapter Series | 889 Series | Control Method | Stored program control |
| Other Specifications | Yes - Lithium | Number of Inputs and Type | 8 - Digital (4 - Analog) |
| For Use With/Related Products | CD12 Series | ||
Environmental
| Mechanical Life | 10,000,000 Cycles | Ingress Protection | IP40 (Front) IP20 (Terminal) |
| Operating Temperature | -20°C ~ 70°C | ||
