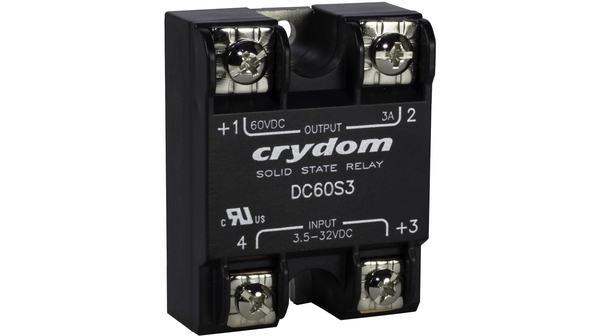

点击放大查看
对参数有疑问？问 AI 助手
Business
| Lead Time | 32 Days | Other Names | CC1126 |
| Subcategory | Solid State Relay | Product Category | Solid State Relays - Industrial Mount |
| Standard Package | 20 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85364900 |
| Rad Hardened | No | ||
Electrical
| Output | Bipolar Transistor | Circuit | SPST-NO (1 Form A) |
| Input Type | DC | Output Type | DC |
| Load Current | 3A | Turn On Time | :0.1ms |
| Switching Mode | :DC Switch | Voltage - Load | 3 ~ 60 V |
| Voltage Rating | 32 V | Current - Surge | :6A |
| Input Impedance | :1500ohm | Current - Output | 3000 mA |
| Delay Time - OFF | :0.3ms | Voltage - Supply | 3.5 VDC to 32 VDC |
| Current - Leakage | :0.1mA | Voltage - Isolation | 4000 V |
| Current Rating (Max) | 3 A | Insulation Resistance | :1000Mohm |
| Voltage - Input (Min) | 3.5 ~ 32VDC | Voltage - Output (Max) | 60 V |
| Voltage - Supply (Max) | :32VDC | Voltage - Supply (Min) | 3 VDC to 60 VDC |
| Current Rating - Filter | :0.02A | Current - Quiescent (Max) | :0.02A |
| Current - Input Bias (Max) | 2.2 mA | Current - Average Rectified (Io) | :3A |
| Voltage - Rated AC (Phase to Phase) | :60VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :3VDC |
Mechanical
| Depth | :47.5mm | Width | :45.7mm |
| Length | :22.9mm | Weight | 0.109 |
| Packaging | Bulk | Lead Style | Screw |
| Mounting Type | Screw | Terminal Type | :Screw |
| Mounting Style | Panel | Package / Case | Hockey Puck |
| Length - Overall | 58.4 | Termination Style | Screw |
| Number of Positions | 4 | Shell Size - Insert | 23 |
| Contact Layout, Typical | :SPST-NO | ||
Product Info
| Series | DC60 | Relay Type | Relay |
| Circuit Type | 1 Form A | Product Type | Industrial Mount |
| Control/Display Type | :DC | Printed Circuit Board | 4 |
Environmental
| Operating Temperature | -30C to 80C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
