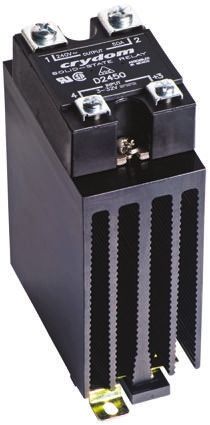

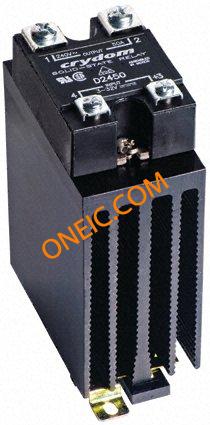

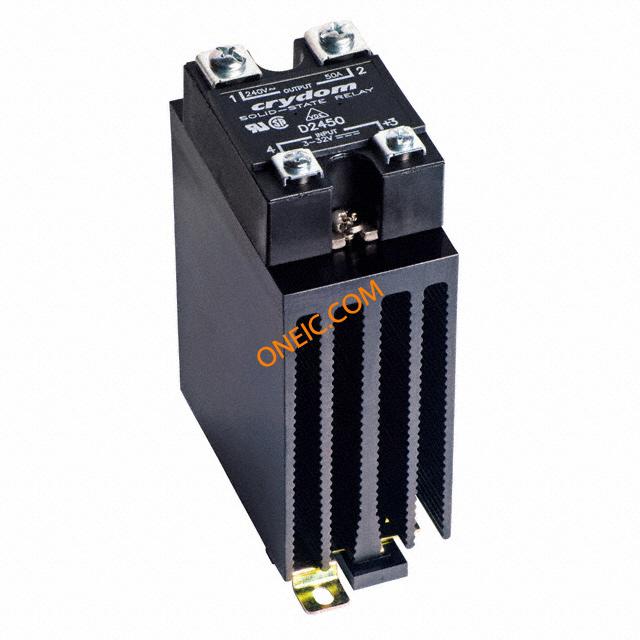

HS151DR-HD6050
| Manufacturer | |
| Description | Heat Sinks 40A/660V DC Input ZC SSR Mounted Heatsink RELAY SSR SPST 40A W/HEATSINK ZC 40A DIN Rail Panel Mount, Zero Voltage Solid State Relay, 660V ac Heatsink/SSRAssembly;Rated@40A/660VAC;DCInput;SSRMountonHS151DRHeatsink Crydom 40 A DIN Rail安装 固态继电器, 零交叉切换, 660 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 56 Days |
| Subcategory | Heat Sink | Product Category | Heat Sinks |
| Standard Package | 10 | ||
Compliance
| RoHS | RoHS Compliant | Standards | uL,CSA,VDE,CEapprovedSSRs |
Electrical
| Circuit | SPST-NO (1 Form A) | Output Type | AC, Zero Cross |
| Load Current | 40A | Turn On Time | 1/2 cycle |
| Voltage Range | 48-660VAC | Voltage - Load | 48 ~ 660 V |
| Current - Surge | 625Apk | Current - Output | 40Arms |
| Voltage - Supply | 48 → 660V 交流 | Battery Pack Voltage | 48 V ac |
| Current Rating (Max) | 40 A | Minimum Load Required | 0.04 A |
| Voltage - Input (Min) | 3 ~ 32VDC | Voltage - Supply (Min) | 3 V dc |
| Input Logic Level - High | 3 → 32 V 直流 | Voltage - Limiting (Max) | 660 V 交流 |
| Current - Off State (Max) | 10 mA | Current - Quiescent (Max) | 0.04 A |
Mechanical
| Color | Black | Depth | 45mm |
| Width | 81 mm | Height | 100 mm |
| Length | 97 mm | Packaging | Bulk |
| Fin Height | Vertical | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Package / Case | Hockey Puck with Heat Sink |
| Size / Dimension | 97 x 45 x 142.8mm | Termination Style | Screw Terminal |
| Heat Sink Material | Aluminum | Minimum Working Height | 48 V 交流 |
| Operating Force - Mid Compression | 1/2 周期 | ||
Product Info
| Type | WithHeatSink | Series | 22 - HS |
| Function | SolidState | Relay Type | Relay |
| Application | SSR | Switch Type | Zero Voltage |
| Manufacturer | HS151DR-Series | ||
Environmental
| Thermal Resistance | 1.5 C/W | ||
