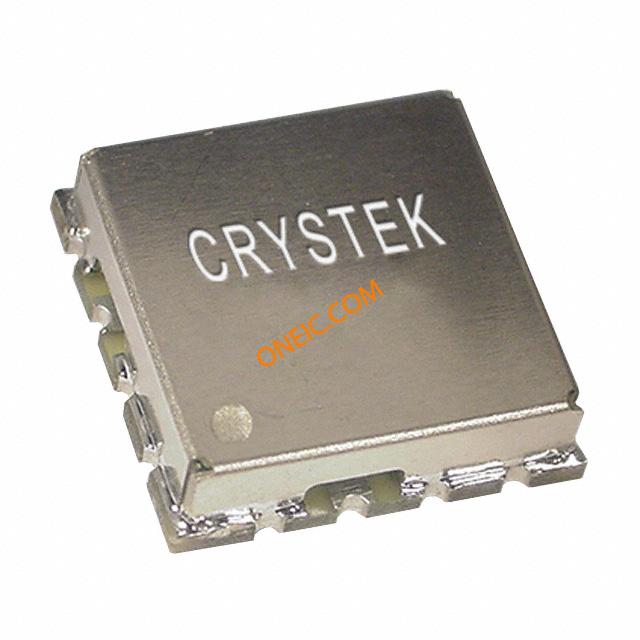

CVCO55CW-0400-0800
| Manufacturer | |
| Description | VCO Oscillators 400-800MHz OSC VCO 400-800MHZ SMD .5X.5" |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | VCO | Product Category | VCO Oscillators |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Icc Max | 17mA | Frequency | 400 MHz to 800 MHz |
| Power (dBm) | 7 ±5 | Frequency Range | 400 ~ 800MHz |
| Pushing (MHz/V) | 5 | Load Capacitance | 200 pF |
| Voltage - Supply | 5V | Frequency - Center | 600MHz |
| Tuning Voltage (VDC) | 0 ~ 12 V | 2nd Harmonic, Typ (dBc) | -5 |
| Phase Noise Typ (dBc/Hz) | -105 | ||
Mechanical
| Height | 0.150" (3.81mm) | Packaging | Cut Strip |
| Mounting Style | SMD/SMT | Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | Termination Style | SMD/SMT |
Product Info
| Series | CVCO | ||
Environmental
| Operating Temperature | -10°C ~ 70°C | ||
