点击放大查看

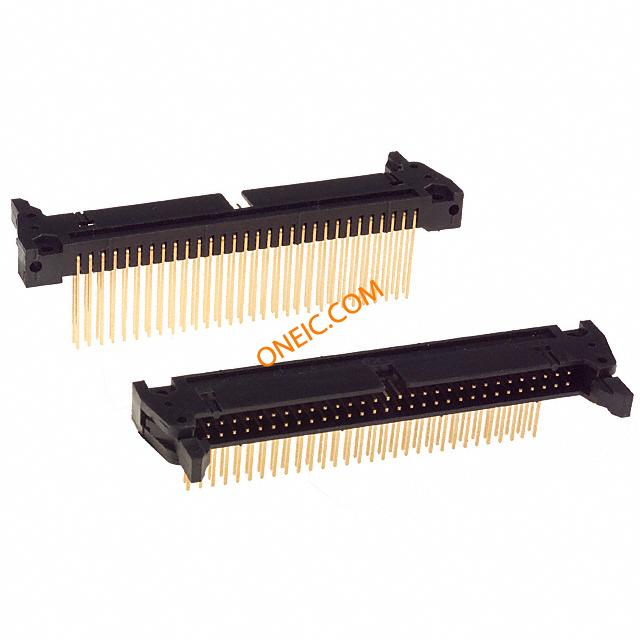

CWN-521-60-0060
| Manufacturer | |
| Description | CONN HDR SHROUD 60PIN RT ANG WW |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 100 | ||
机械参数
| 颜色 | Blue | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Wire Wrap | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Latch, Short/Eject Hooks |
| 排数 | 2 | 位数 | 60 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 产品特性 | Polarizing Key | 加载位置数 | All |
