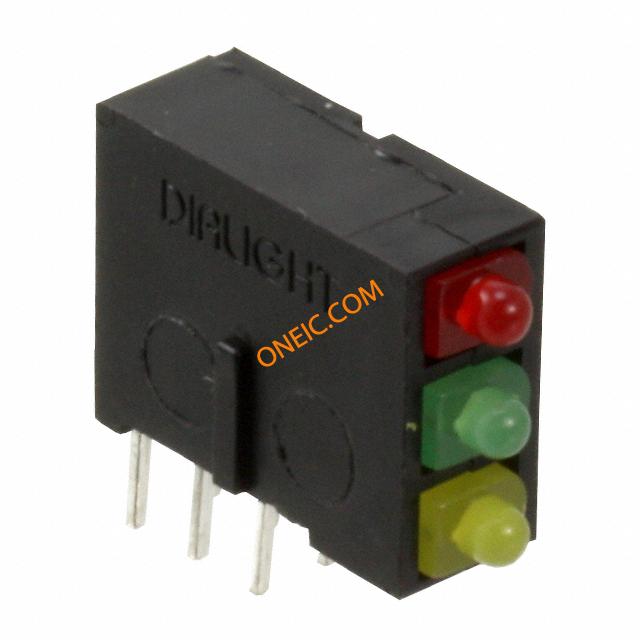

570-0100-123F
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | LED Circuit Board Indicators | Standard Package | 25 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 20mA | Optic Size | 2 mm |
| Wavelength | 625 nm, 588 nm, 568 nm | Lamp Output | No |
| Luminous Flux | 8.7mcd|12.6mcd | Viewing Angle | 70 deg |
| Voltage Rating | 2.2V Green, 2V Red, 2.1V Yellow | Wavelength - Peak | 565nm, 635nm, 585nm |
| LED Forward Current | 20 mA | LED Forward Voltage | 2 V, 2.1 V, 2.2 V |
| Millicandela Rating | * | Current Rating (Max) | 20mA |
| Power Dissipation (Max) | 100/100/60 | Current - Peak Pulse (10/1000us) | 30/30/20 |
| MSCP (Mean Spherical Candle Power) | * | Voltage - Gate Trigger (Vgt) (Max) | 5(Min) |
Mechanical
| Color | Green|Red|Yellow | Packaging | Bulk |
| Lead Style | Through Hole | Lens Style | Circular |
| Lens Diameter | 1.8x1.8x1.52 | Mounting Type | Through Hole |
| Mounting Style | Right Angle | Lens Style/Size | Round with Domed Top, 2mm |
| Illumination Color | Red, Yellow, Green | Number of Positions | 6 |
Product Info
| Type | Tri-Level Uni-Color | Series | 570 |
| Lens Type | Colored Diffused | Configuration | 3 Single Color LEDs, Tri-Level |
| Number of LEDs | 3 | Channels per IC | 3 High |
| Output Configuration | Through Hole, Right Angle | ||
Environmental
| Operating Temperature | 100 | Luminous Flux @ Current/Temperature | 15 mcd, 8 mcd, 10 mcd |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- 570-0100-yyy/F Drawing
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
