点击放大查看

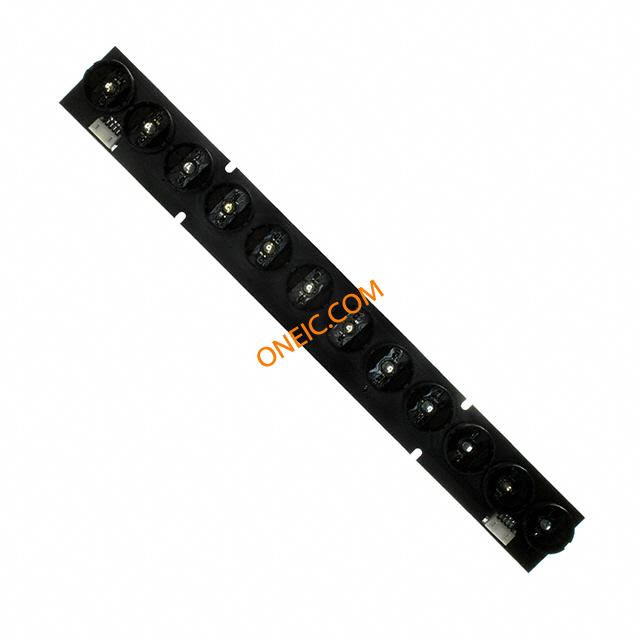

CE12L-RGB-XXX
| Manufacturer | |
| Description | LED Uni-Color Blue/Green/Red COLOR ENGINE 12X1W RGB LINEAR |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Not Compliant |
电气参数
| 电压 | 2.95V Red, 3.42V Green, 3.42V Blue | 波长 | 627nm, 530nm, 455nm |
| 光通量 | 53lm|44lm | 额定电压 | 3.42/3.42/2.95 |
| 输出电流 | 12 x 350mA | 驱动电路 | Yes |
| 最大额定电流 | 12 x 350mA | 主波长 | 455/530/627 |
机械参数
| 颜色 | Blue/Green/Red | 宽度 | 35 |
| 透镜样式 | Circular | 安装类型 | Screw |
| 连接器用途 | Yes | 总长度 | 290 |
| 外壳尺寸-插件 | 15.5 | ||
产品信息
| 类型 | Uni-Color | 配置 | Linear |
| LED数量 | 12 | ||
环境参数
| 光通量 @ 电流/温度 | 44lm Red, 53lm Green, 220mw Blue | ||
