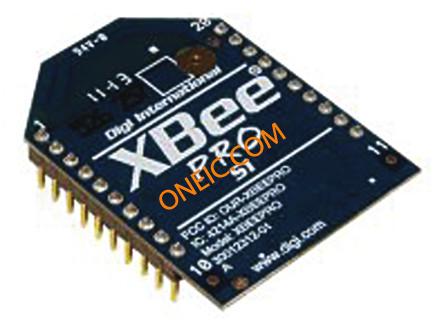

XBP24-API-001J
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Data Rate | 115.2 Kbps | Frequency | 2.4GHz |
| Interface | 3.3V CMOS UART | Power - Max | 18dBm |
| Sensitivity | -100dBm | Output Power | 10 mW |
| Sensing Range | 100 m | Data Interface | PCB, Through Hole |
| Power - Output | 10dBm | Data Rate (Max) | 250kbps |
| Current - Supply | 50 mA | Voltage - Supply | 2.8 VDC to 3.4 VDC |
| Current - Receiving | 55mA | Current - Transmitting | 150mA |
| Available Frequency Range | 3.3V CMOS UART | Current - Supply (Main IC) | 45 mA |
| Frequency Bands (Low / High) | 2.4 GHz | Voltage - Input Offset (Max) | -100dBm |
Mechanical
| Width | 24.38mm | Height | 2.82mm |
| Length | 32.94mm | Packaging | Bulk |
| Package / Case | Module | Size / Dimension | 24.38 x 32.94 x 2.82mm |
| Antenna Connector | PCB | ||
Product Info
| Applications | Home/Building Automation, Industrial Control, ZigBee™ | Network Technology | Pan |
| Modulation or Protocol | 802.15.4 | ||
Environmental
| Mechanical Life | New At Mouser | Operating Temperature | + 85 C |
Documents & Media
Online Document
Sourcing & traceability
- Datasheet
- xbee-series1-module#specs
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
