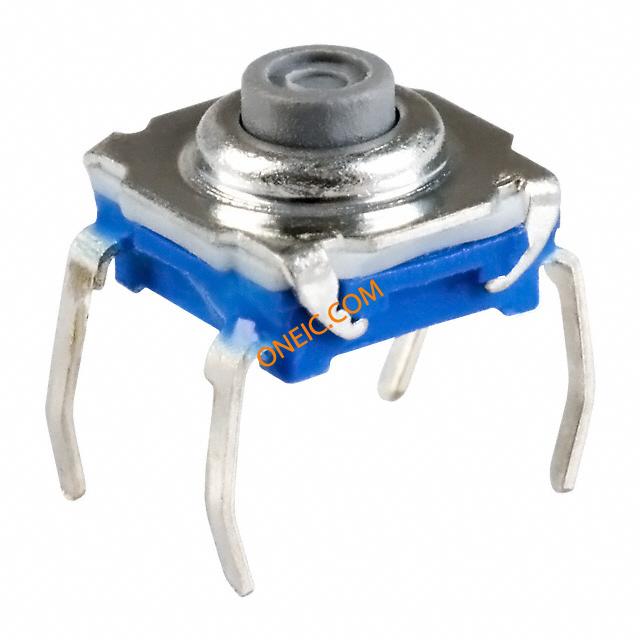

GS4.70F130QP
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Tactile Switches | Standard Package | 1,000 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 12 V |
| Switch Function | Off-Mom | Current Rating (Max) | 30 mA |
| Contact Rating @ Voltage | 0.05A @ 50VDC | ||
Mechanical
| Outline | 7.20mm x 7.20mm | Packaging | Bulk |
| Contact Form | SPST | Actuator Type | Standard |
| Mounting Type | Through Hole | Switch Travel | 0.30mm |
| Connector Type | No | Contact Finish | Silver |
| Mounting Style | Through Hole | Operating Force | 130gf |
| Actuator Material | Liquid Crystal Polymer (LCP) | Termination Style | PC Pin |
| Actuator Orientation | Top Actuated | Height - Seated (Max) | 0.9 mm |
| Actuator Height off PCB, Vertical | 4.70mm | ||
Product Info
| Type | Switches | Series | GS |
| Illumination | Non-Illuminated | Card Standard | Tactile Switch |
Environmental
| Mechanical Life | 400,000 Cycles | Operating Temperature | -40°C ~ 80°C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- GS4.70F130QP Drawing
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
