TL3303F160QG
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | EG4607CT | Product Category | Tactile Switches |
| Standard Package | 1,500 | Factory Pack Quantity | 1500 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 12 V |
| Switch Function | Off-Mom | Current Rating (Max) | 50 mA |
| Contact Rating @ Voltage | 0.05A @ 12VDC | ||
Mechanical

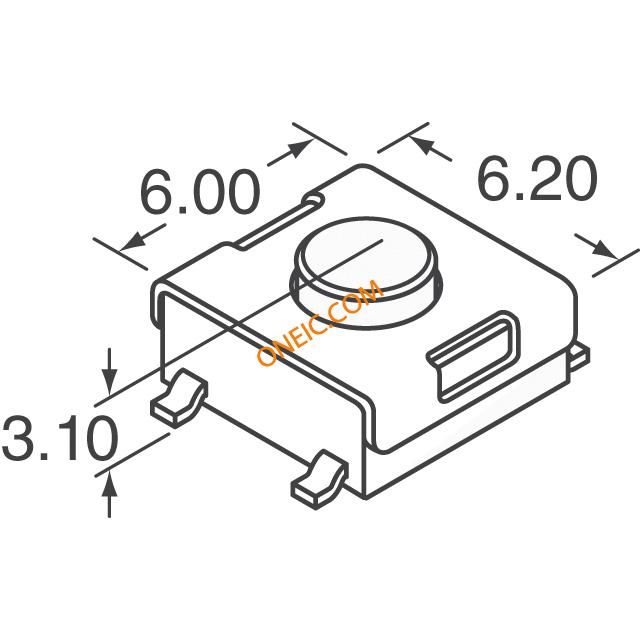

| Outline | 6.20mm x 6.00mm | Packaging | Tape & Reel (TR) |
| Contact Form | SPST | Actuator Type | Standard |
| Mounting Type | Surface Mount | Switch Travel | 0.25mm |
| Connector Type | No | Contact Finish | Silver |
| Mounting Style | SMD/SMT | Operating Force | 160gf |
| Actuator Material | Polyphenylene Sulfide (PPS) | Termination Style | Gull Wing |
| Actuator Orientation | Top Actuated | Height - Seated (Max) | 3.1 mm |
| Actuator Height off PCB, Vertical | 3.10mm | ||
Product Info
| Type | Switches | Series | TL3303 |
| Illumination | Non-Illuminated | Card Standard | Tactile Switch |
Environmental
| Mechanical Life | 100,000 Cycles | Operating Temperature | -20°C ~ 70°C |
Documents & Media
Similar Parts
Sourcing & traceability
- Datasheet
- TL3303FyyyQG.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
