TL6120DF300QG
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | EG4356TR | Product Category | Tactile Switches |
| Standard Package | 300 | Factory Pack Quantity | 400 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 50 V |
| Switch Function | Off-Mom | Current Rating (Max) | 50 mA |
| Contact Rating @ Voltage | 0.05A @ 50VDC | ||
Mechanical

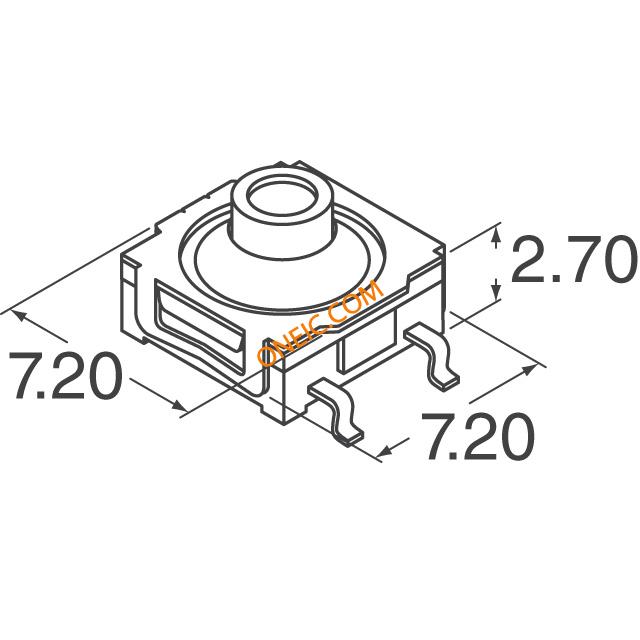

| Outline | 7.20mm x 7.20mm | Packaging | Tape & Reel (TR) |
| Contact Form | SPST | Actuator Type | Standard |
| Mounting Type | Surface Mount | Switch Travel | 0.50mm |
| Contact Finish | Phosphor Bronze | Mounting Style | SMD/SMT |
| Operating Force | 300gf | Actuator Material | Polyamide (PA), Nylon |
| Termination Style | Gull Wing | Actuator Orientation | Top Actuated |
| Height - Seated (Max) | 10 mm | Actuator Height off PCB, Vertical | 10.00mm |
Product Info
| Type | Switches | Series | TL6120 |
| Illumination | Non-Illuminated | Card Standard | Tactile Switch |
Environmental
| Mechanical Life | 50,000 Cycles | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Online Document
Sourcing & traceability
- Datasheet
- TL6120DFyyyQG.stp
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
