3312
| Manufacturer | |
| Description | DC Fan Ball Bearing 12V 2.4W 3000RPM 47.1CFM 37dB Flange Mount FAN 92 X 32MM 12VDC Ball bearing axial fan,80cu.m/h 12Vdc Fans 92x32mm 12VDC 47CFM 2.4W 3000RPM 37dB BB FAN, 92MM, 12VDC Fan;DC;12V;92x92x32mm;Sq;47CFM;2.4W;37dBA;3000RPM;Leadwires ebm-papst 3300 系列 直流 轴流风扇, 80m³/h, 12 V 直流, 2.5W, 92 x 92 x 32mm |
| Category |
Business
| Lead Time | 112 Days | Other Names | 381-1073 |
| Subcategory | Blowers and Fans | Product Category | Fans |
| Standard Package | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 84145920 |
| Approval Agency | :CSA, UL | ||
Electrical
| Noise | 37 dB(A) | Speed | Counter Clockwise |
| Input Range | 6 to 15 | Power - Max | 2.4 |
| Power (Watts) | 2.40W | Power - Rated | 2.4 W |
| Voltage Range | 6 ~ 15VDC | Voltage Rating | 12VDC |
| Voltage - Supply | 12 V | Power Supply Type | :Wire Leaded |
| Voltage - Input (Min) | :6V | Power - Average Forward | :2.5W |
| Voltage - Continuous Operating (Max) (MCOV) | :15V | ||
Mechanical
| RPM | 3000 RPM | Size | 3.6x1.26(92x32)In.(mm) |
| Depth | :32mm | Width | :92mm |
| Height | 32 | Weight | 0.42 lb (190.51g) |
| Air Flow | 47.1 CFM (1.34m³/min) | Fan Type | Tubeaxial |
| Material | Plastic | Rotation | CCW |
| Thickness | 32mm | Flow (CFM) | :80m³/h |
| Flow (SCFM) | :47.1cu.ft/min | Termination | Leads |
| Bearing Type | Ball | Height (Max) | :92mm |
| Nominal I.D. | 3000 | Mounting Type | Flange Mount |
| Housing Material | Polybutylene Terephthalate Polymer | Length - Overall | 92 |
| Material - Blade | Polyamide (PA), Fiberglass Reinforced | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Primary Material | Fans | Size / Dimension | Square - 92mm L x 92mm H x 32mm W |
| Termination Style | Wire Leads | Fan Accessory Type | 3.6x1.26(92x32)In.(mm) |
| Panel Cutout Shape | :88mm | Dimensions - Overall | 3.6x3.6x1.26In. |
| Mounting Hole Diameter | :4.5mm | Mounting Panel Thickness | :71.5mm |
Product Info
| Type | :Standard,92mm | Series | 3300 |
| Function | DC | Direction | ExhaustoverStruts |
| Switch Type | DC | Manufacturer | 3300Series |
| Configuration | Square | ||
Environmental
| Rated Life | 70000 hrs @ 40°C | Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Thermal Resistance @ Natural | 47CFM | Operating Temperature - Junction | :70000h |
Documents & Media
Similar Parts
LZ23
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories Metal Finger Guard for 92mm Fan SC92-W2 FAN GUARD 92MM METAL Fan Accessories Metal Finger Guard for 92mm Fan SC92-W2 LZ23 WeldedFingerGuard,NickelChrome-PlatedSteelWire,.062"Dia,ForSeries3000 92mm风扇 金属 手指防护罩, 89.8 (Dia)mm
LZ260
ebm-papst
Thrml Mgmt Access Spacer Plastic Fan Cords & Accessories Plastic Spacer For 3300/4300/8300 COMPRESS STRUT 3300,4300,8300SER Accessory; Fibreglass Reinforced Plastic Fan Accessories Plastic Spacer For 3300/4300/8300 Accessory;FibreglassReinforcedPlastic
LZ23-2
ebm-papst
Thrml Mgmt Access Finger Guard Black Plastic Fan Cords & Accessories PLSTC FINGER GRD FAN GUARD 92MM PLASTIC Fan Accessories PLSTC FINGER GRD
LZ23-3
ebm-papst
Thrml Mgmt Access Finger Guard Black Plastic Fan Cords & Accessories GUARD PLAST SCREW BARBD 3000 SER FAN GUARD 92MM PLASTIC Fan Accessories GUARD PLAST SCREW BARBD 3000 SER FingerGuard,BlackPlasticw/Barbs,1.81inchdiameter,forFanSeries3000.

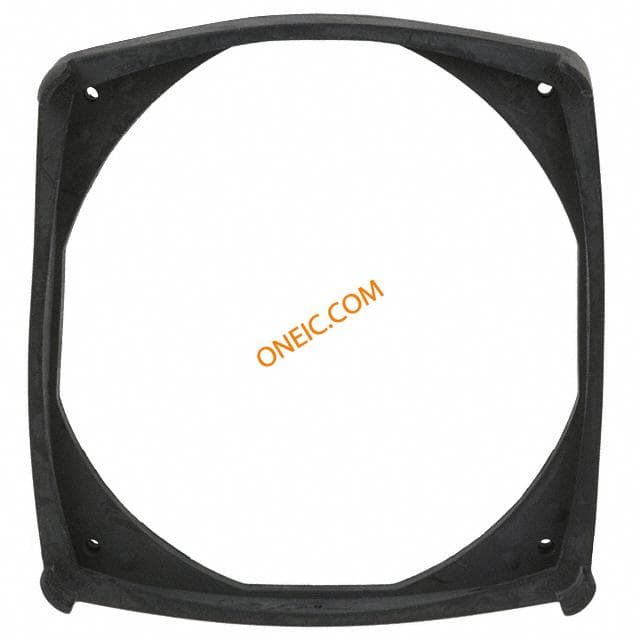

QLM-92-40-10
Qualtek
Fan Cords & Accessories 90mm FAN SILENCER FAN SLEEVE 92MM BLACK RUBBER Fan Accessories 90mm FAN SILENCER FAN VIBRATION SLEEVE Fan Accessories Fan Silencer and Accessories QLM Fan Vibration Sleeves Fan Size: 92 Fan Flange Thickness: 40 Material: TPE (Thermoplastic Elastomer) RoHS Compliant Color: Black
3212JN
ebm-papst
DC Fan Ball Bearing 12V 7.5W 6000RPM 77CFM 51dB Flange Mount Fans 92x38 12DC 76.5CFM 7.5W 6000RPM 51dB BB FAN, AXIAL, 92X92X38MM, 12VDC

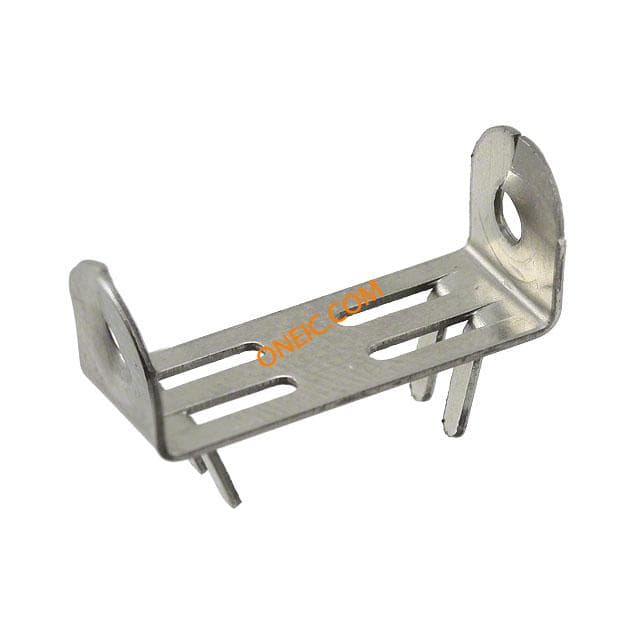

LZ212
ebm-papst
Thrml Mgmt Access Fan Clip Steel Fan Cords & Accessories SCREW CLIP 830033004300 SPRING STEEL MOUNTING SCREW CLIP Screw Clip For 80 92 & 119mm Fans Fan Accessories SCREW CLIP 830033004300 CLIP, MOUNTING SCREW, PK4 安装螺丝夹 风扇安装硬件, 使用于3300 / 4300 和 8300 风扇系列

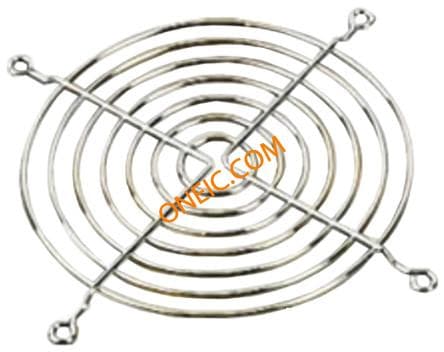

LZ23K
