6224N

Manufacturer	ebm-papst Mulfingen GmbH & Co. KG
Description	DC Fan Ball Bearing 24V 18W 3400RPM 241.3CFM 55dB Flange Mount FAN 171.5 X 50.8MM 24VDC DC axial fan 172mm dia 24V 410m3/h Fans 172x51 24DC 241CFM 18W 3400RPM 55dBA BB DC Fan Ball 24V 18W 241.3CFM 55dB Flange Mount FAN, 172MM, 24VDC Fan;DC;24V;172x51mm;Round;241.3FM;18W;55dBA;Terminals Axial fan DC ø 172 x 51 mm 410 m³/h 24 VDC 18 W, 6224N, EBM-Papst ebm-papst 6200N 系列直流轴流风扇, 410m³/h, 24 V 直流, 18W, 172 (Dia.) x 51mm
Category	Hardware and Thermal SolutionsDC FansBlowers

对参数有疑问？问 AI 助手

Business

Lead Time	67 Days	Other Names	381-1042
Subcategory	Blowers and Fans	Product Category	Fans
Standard Package	30

Compliance

RoHS	Vendor undefined / Vendor undefined	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Compliant	Standards	ULListed,CSACertified,VDEApproved
Tariff No	84145920	Rad Hardened	No
Approval Agency	:CSA, UL, VDE

Electrical

Noise	55 dB(A)	Speed	Counter Clockwise
Frequency	Not Required	Input Range	12V to 28V
Power - Max	18W	Noise Figure	55 dB
Power (Watts)	18.0W	Power - Rated	18 W
Voltage Range	12 ~ 28VDC	Voltage Rating	24VDC
Voltage - Supply	24 V	Power Supply Type	:Terminals
Power - Average Forward	:18W

Mechanical

RPM	3400 RPM	Size	6.8x2(172x51)In.(mm)
Depth	:51mm	Height	50.8 mm
Weight	1.8 lbs (816.5g)	Air Flow	241.3 CFM (6.83m³/min)
Diameter	171.5 mm	Fan Type	Tubeaxial
Material	Metal	Rotation	CCW
Flow (CFM)	:6.76m³/min	Flow (SCFM)	:241.3cu.ft/min
Termination	Terminals	Bearing Type	Ball
Mounting Type	Flange Mount	Mounting Style	Flange
Outer Diameter	:172mm	Housing Material	Aluminum
Material - Blade	Polyamide (PA), Fiberglass Reinforced	Material - Frame	Metal
Primary Material	Fans	Size / Dimension	Round - 171.5mm Dia x 50.8mm W
Termination Style	Wire Leads	Diameter - Outside	:172mm
Fan Accessory Type	6.8x2(172x51)In.(mm)	Dimensions - Overall	6.8x2In.

Product Info

Type	DC Fan	Series	6200N
Function	DC	Direction	ExhaustoverStruts
Switch Type	DC	Manufacturer	6200NSeries
Configuration	Round

Environmental

Rated Life	75000 hrs @ 40°C	Operating Temperature	-4 ~ 162°F (-20 ~ 72°C)
Thermal Resistance @ Natural	241.3CFM	Operating Temperature - Junction	72C

Documents & Media

PDF Document

Accessories Quick Reference

PDF Document

DC-axial-fan-6224N-ENG.pdf

PDF Document

6224N

PDF Document

53258.pdf

PDF Document

6224NH.pdf

Similar Parts

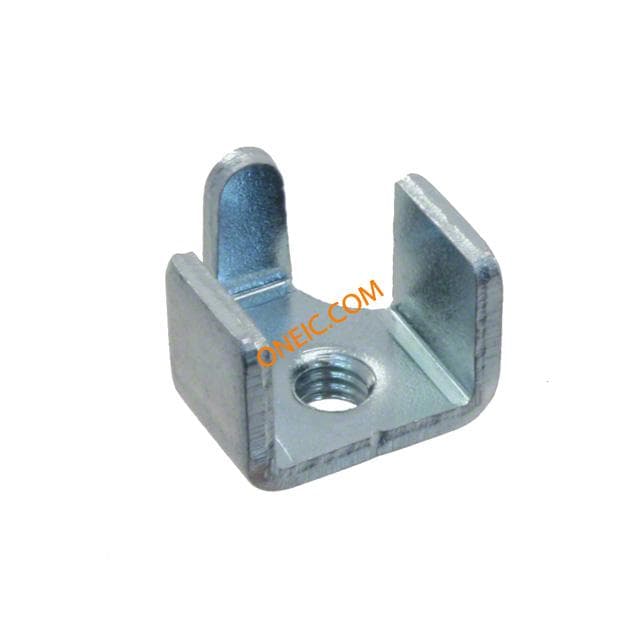

LZ215

ebm-papst

Thrml Mgmt Access Steel Sheet Fan Cords & Accessories THRML MGMT ACCESS STEEL SHEET MOUNTING SCREW CLIP Fan Accessories THRML MGMT ACCESS STEEL SHEET

$12.9880

Details

LZ38

ebm-papst

Thrml Mgmt Access Finger Guard Steel Wire Fan Cords & Accessories FINGER GRD STEEL WIRE FINGER GUARD METAL F/6000 SERIES Fan Accessories FINGER GRD STEEL WIRE Thrml Mgmt Access Steel Wire Finger Guard Fan;Accessory;FingerGuardfor6000Series 172 x 51mm风扇金属，钢手指防护罩

$44.2000

Details

LZ26

ebm-papst

Thrml Mgmt Access Finger Guard Steel Wire Fan Cords & Accessories FINGER GUARD METAL F/172MM FANS FINGER GUARD METAL F/172MM FANS Fan Accessories FINGER GUARD METAL F/172MM FANS LZ26 FingerGuard,172mm,6Ring

$31.9600

Details

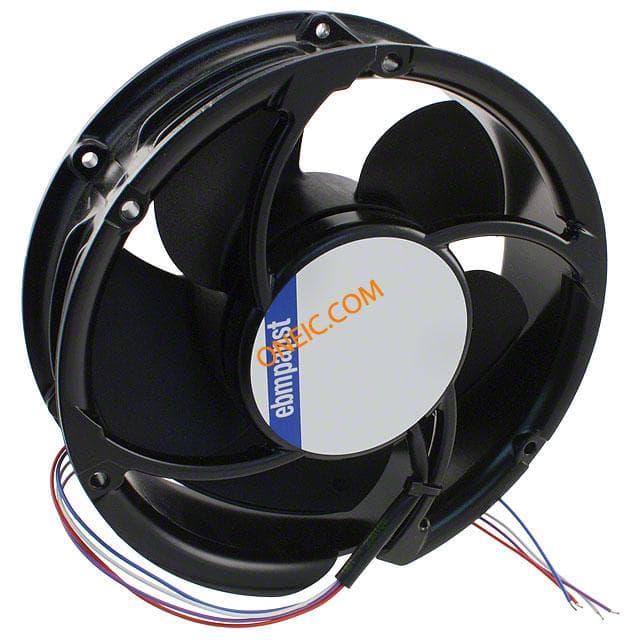

6314/2TDHHP
