B72724D160H62
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 495-3422-1 | Part # Aliases | B72724D0160H062 |
| Product Category | ESD Suppressors | Standard Package | 3,000 |
| Factory Pack Quantity | 3000 | Standard Package Name | SMD |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| ESD Protection | 15@Air Gap/8@Contact Disc | ||
Electrical
| Channels | 4 Channels | Capacitance | 3 pF |
| Voltage Rating | 16 | Maximum DC Volts | 16VDC |
| Number of Elements | 4 | Voltage - Clamping | 350 V |
| Voltage - Breakdown | 80 V | Varistor Voltage (Max) | 80V |
| Voltage - Supply (Min) | 16 V | Current - Reverse Leakage @ Vr | 1 |
Mechanical
| Width | 1.75(Max) | Packaging | Tape and Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |

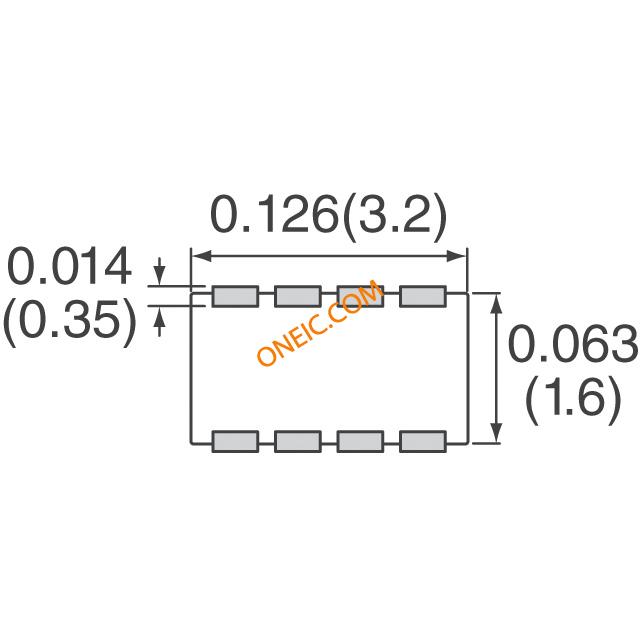

| Package / Case | 0612 (1632 Metric) | Length - Overall | 3.4(Max) |
| Package Quantity | SMD | Termination Style | SMD/SMT |

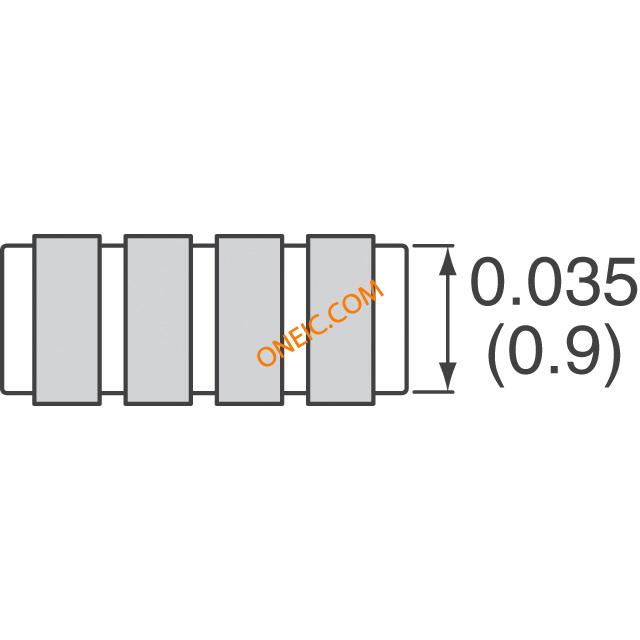

| Number of Positions | 8 | Shell Size - Insert | 0.9(Max) |
Product Info
| Type | CeraDiode | Series | CeraDiodes High-Speed |
| Configuration | Quad | Port Direction | Bi-Directional |
| Number of Circuits | 4 | Printed Circuit Board | 8 |
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- CeraDiodes Hight Speed
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
