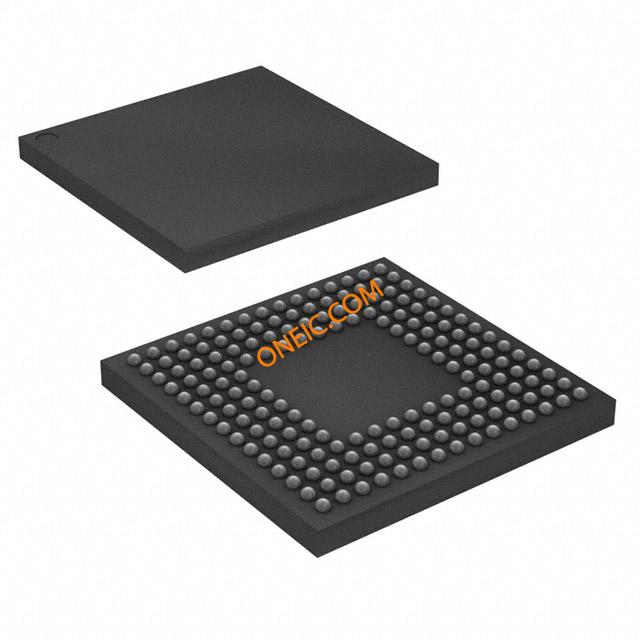

XR17V358IB176-F
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | UART Interface IC | Standard Package | 160 |
| Standard Package Name | BGA | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IrDA|RS-232|RS-422|RS-485 | Tariff No | 85423190 |
Electrical
| Data Rate | 25 Mbps | Voltage Rating | 3.3 V |
| Data Rate (Max) | 25Mbps | Current - Output | 120 mA |
| Current - Supply | 100 | Voltage - Supply | 1.2V, 3.3V |
| Number of Channels | 8 | Voltage - Supply (Min) | 3.63 |
| With IrDA Encoder/Decoder | Yes | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 13.1mm | Height | 1.15mm |
| Length | 13.1mm | Weight | 0.00025 |
| Packaging | Tray | Lead Style | Ball |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :176 | Package / Case | 176-LFBGA |
| Package Cooled | FBGA | Material Finish | :MSL 4 - 72 hours |
| Length - Overall | 13 | Package Quantity | LFBGA |
| Size / Dimension | 13.1 x 13.1 x 1.15mm | Number of Positions | 176 |
| Shell Size - Insert | 1.05 | Supplier Device Package | 176-FPBGA (13x13) |
Product Info
| FIFO's | Yes | Features | :Auto RS485, Auto RTS / CTS / IrDA / Tx/Rx FIFO Ctrs / Tx/Rx FIFO INT Trig |
| Protocol | RS485 | With Modem Control | Yes |
| Printed Circuit Board | 176 | With Auto Flow Control | Yes |
| With False Start Bit Detection | Yes | ||
Environmental
| Operating Temperature | +85 °C | ||
Documents & Media
Online Document
Online Document
Online Document
Online Document
Sourcing & traceability
- Datasheet
- XR17V35(2,4,8) Brochure
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
