点击放大查看
FLUKE-190-204/AM/S
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 3894494 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | Part Status | 190-204/S |
| Safety Category | CAT III|CAT IV | ||
Electrical
| Accuracy | ±(1.5%ofreading+0.04×range/div) | Channels | 4 |
| Frequency | 2ns/div | Interface | USB |
| Resolution | Vertical:8bit | Memory Size | 30kpts |
| Display Type | LCD - Color | Input Impedance | 1M - 14pF |
| Rise Time (Typ) | 1.7ns | Voltage - Supply | 7.2VDC Battery, 17.8VDC Adapter |
| Number of Channels | 4 | Sampling Frequency | 2.5 GS/s |
| Sensitivity (mV/g) | 2mV/div | Voltage - Input (Min) | CAT III 1000V, CAT IV 600V |
| Sampling Rate (Per Second) | 2.5G | ||
Mechanical
| Width | 7.5in | Height | 2.8in |
| Length | 10.4in | Weight | 4.850 lbs |
| Bandwidth | 200MHz | Size / Dimension | 10.1"×6.6"×2.5" |
Product Info
| Type | Handheld | Series | 190 |
| Function | Record, Recall, Save, Trend, DMM | Includes | Alligator Clips, Battery Charger/Adapter, Case, Hook Clips, Probe Set, Software, Test Leads, USB Cable |
| Warranty | 3Years | Probe Type | Passive 10:1 (4) |
| Manufacturer | Fluke | Product Type | Oscilloscope |
| Trigger Type | Automatic|Single Shot|Edge|Delay|Dual Slope | Display Style | 144mmfull-colorLCD,withbacklight |
| Battery Series | Uptosevenhours | Equipment Type | Oscilloscopes |
| Other Specifications | 16×horizontalzoom | Number of Inputs and Type | Twoplusexternaltrigger |
Environmental
| Operating Temperature | +50°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
Similar Parts
VPS420-R
Fluke
$1529.9320
Details

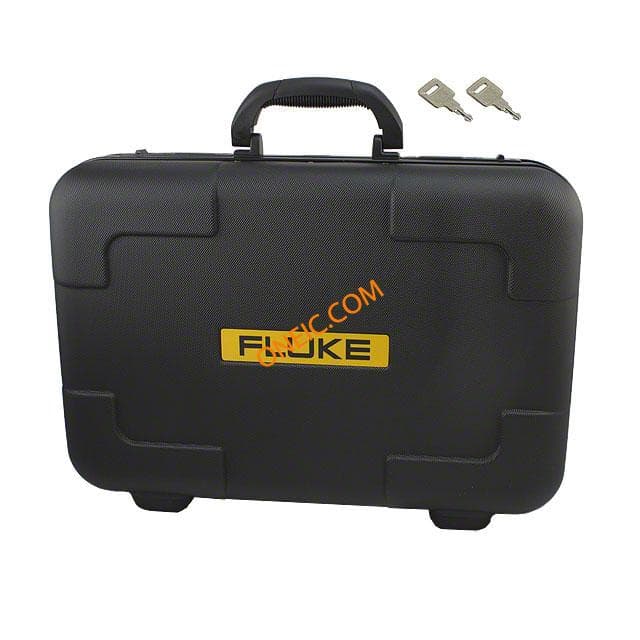

SCC290
Fluke
$3399.9320
Details

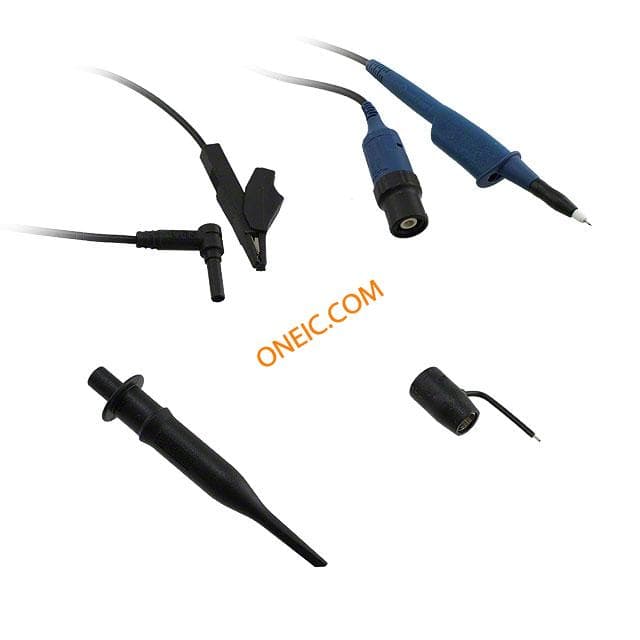

VPS410-B
Fluke
$1359.9320
Details

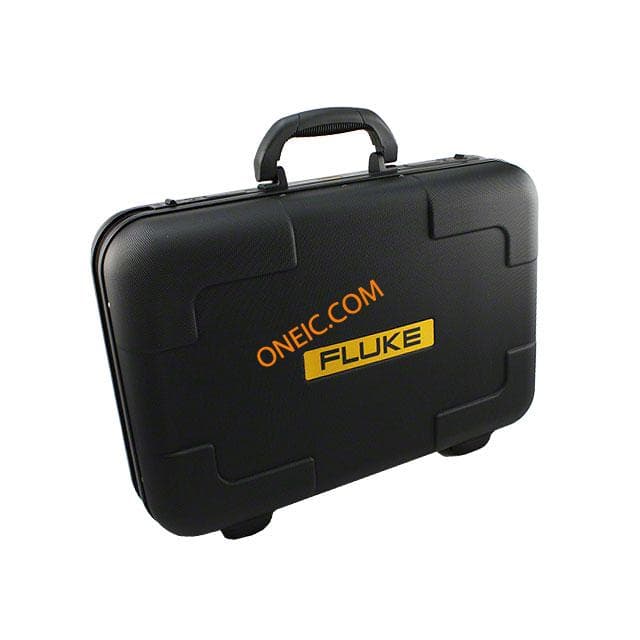

C290
Fluke
$1699.9320
Details

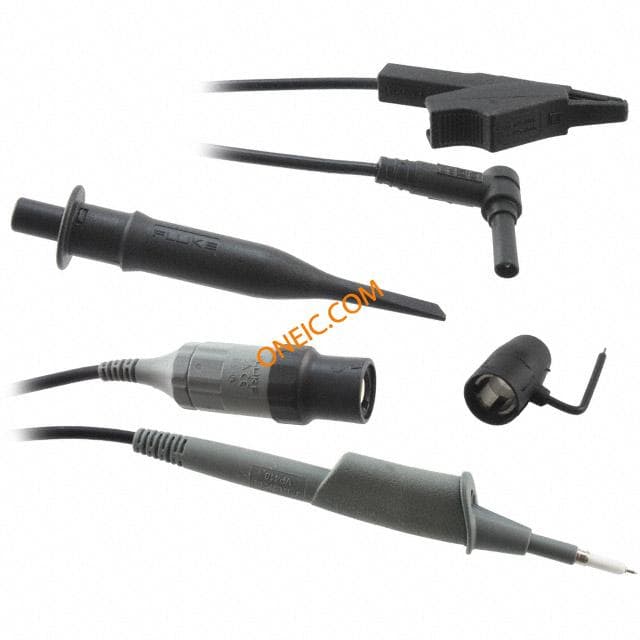

VPS410-G
Fluke
$1538.1600
Details

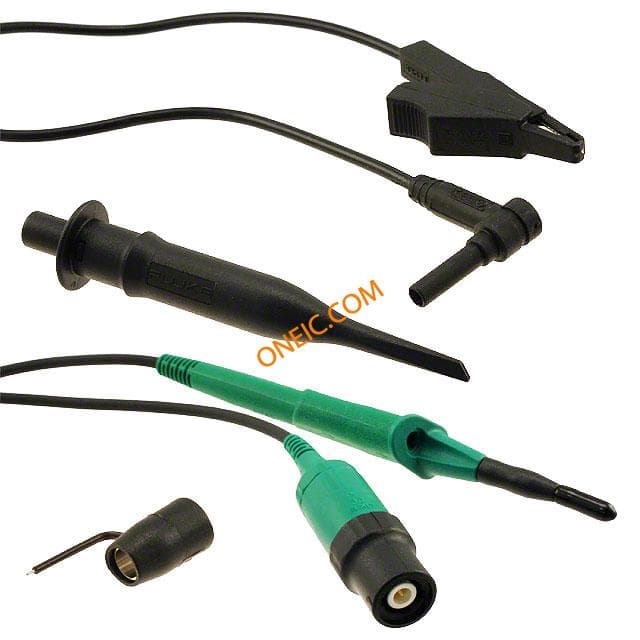

VPS410-V
Fluke
$1359.9320
Details

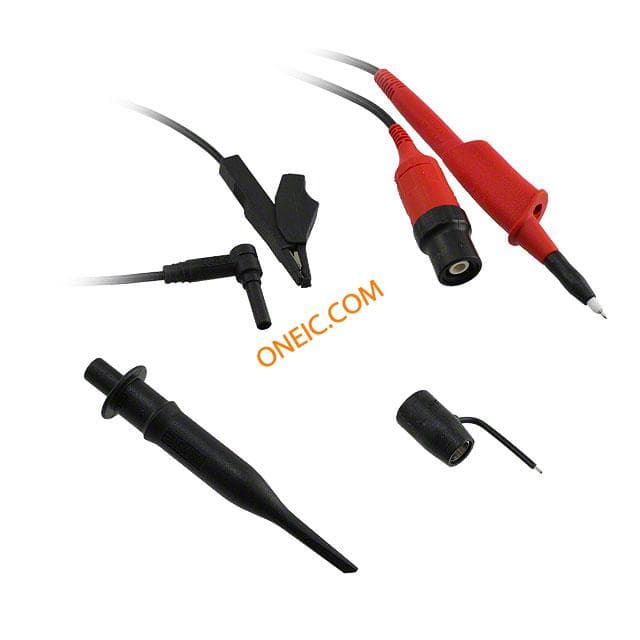

VPS410-R
Fluke
$1359.6600
Details
SW90W
Fluke Electronics
$2039.9320
Details

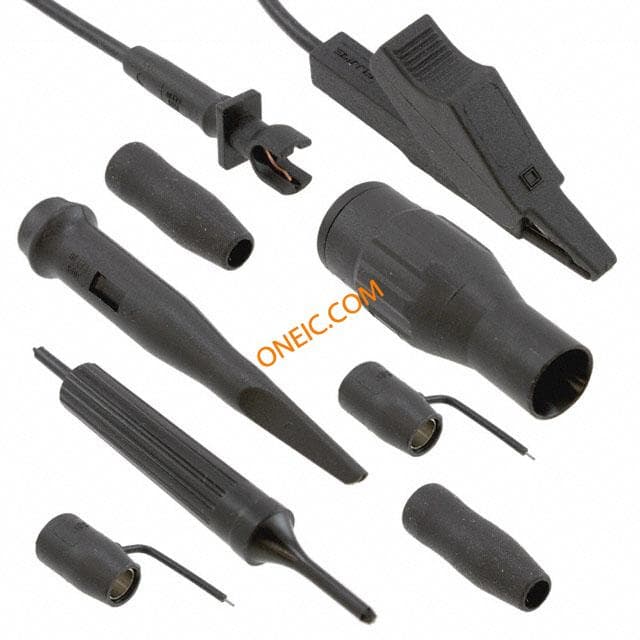

RS500
Fluke Electronics
$1330.0000
Details

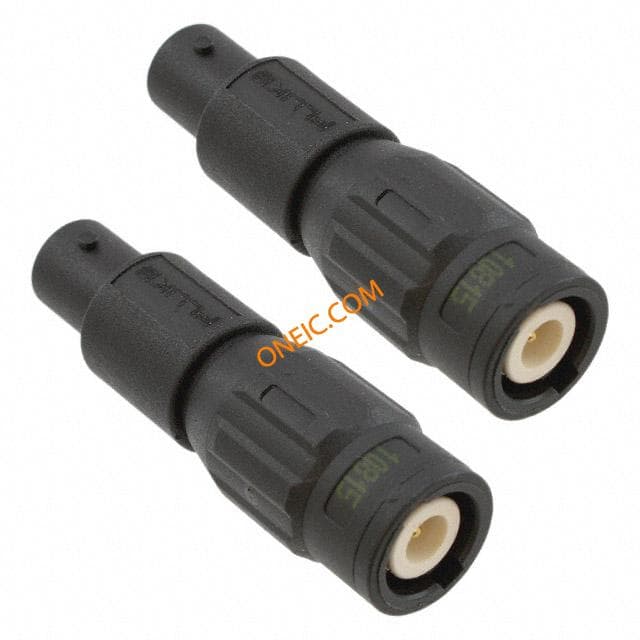

TRM50
Fluke Electronics
$2077.6720
Details

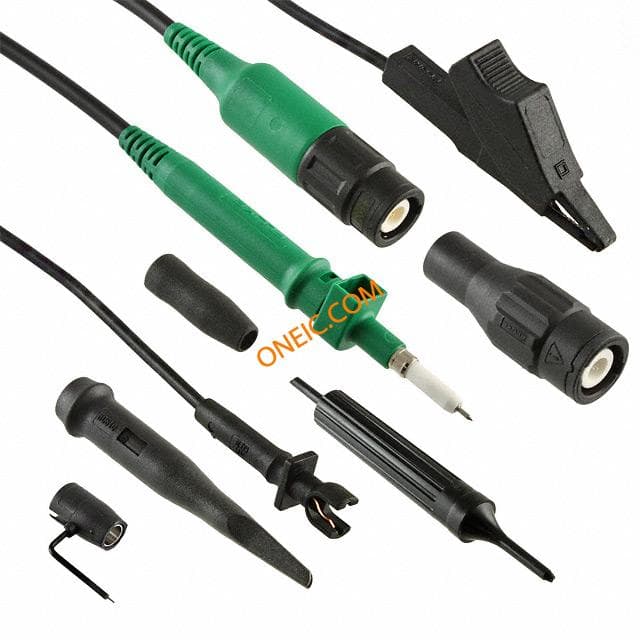

VPS510-V
