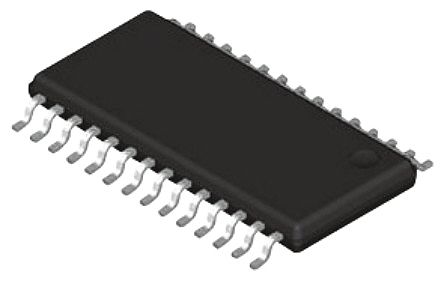

MC9S08SH16CTL
| Category |
对参数有疑问？问 AI 助手
Business
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Timer | 1 x 8 位 | Core Type | S08 |
| Interface | I2C, SCI, SPI | Clock Rate | 40 MHz |
| Resolution | 10Bit | Memory Size | 1024 B |
| Memory Type | 闪存 | Number of I/O | 1 |
| Counter/Timers | 1 | FPGA Core Cells | HCS08 |
| Frequency - Max | 40MHz | Number of DAC's | 2 |
| Voltage - Supply | 2.7 → 5.5 V | Resolution (Bits) | 10 bit |
| Analog Input:Output | 1（12 x 10 位） | Program Memory Size | 16 kB |
| Program Memory Type | Flash | Number of ADCs / DACs | 12 |
| Number of Counter/Timers | 2 Timer | ||
Mechanical
| Width | 4.5mm | Height | 1.05mm |
| Length | 9.8mm | Packaging | Tube |
| Mounting Type | 表面贴装 | Mounting Style | SMD/SMT |
| Number of Pins | 28 | Package / Case | TSSOP-28 |
| Package Quantity | TSSOP | Size / Dimension | 9.8 x 4.5 x 1.05mm |
| Number of Contacts | 1 | Number of Cores/Bus Width | 8Bit |
| Pulse Width Distortion (Max) | 2 x 16 位 | ||
Product Info
| Series | HCS08 | Function | Y |
| Manufacturer | NXP / Freescale | Pattern Type | CISC |
| Timer Resolution | 8Bit | Number of Inputs and Type | 23 I/O |
Environmental
| Operating Temperature | +85 °C | ||
