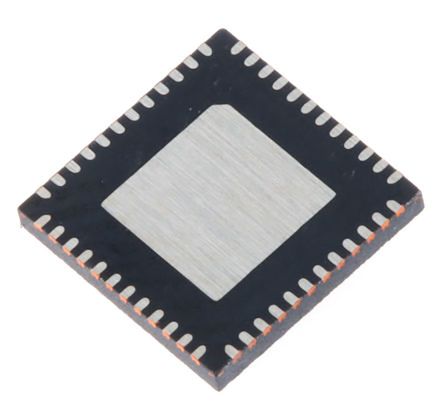

点击放大查看
对参数有疑问？问 AI 助手
Business
| Factory Pack Quantity | 260 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Timer | 1 FTM 外部时钟、1 低功率定时器 | Core Type | ARM Cortex M4 |
| Interface | SPI, I2C, UART | Clock Rate | 50 MHz |
| Resolution | 16Bit | Memory Size | 16 kB |
| Memory Type | 闪存 | PWM Channel | 10 |
| Number of I/O | 1 | Voltage - I/O | 3.3 V |
| Counter/Timers | 2 | Data Converters | EEPROM |
| FPGA Core Cells | ARM Cortex M4 | Frequency - Max | 50MHz |
| Number of DAC's | 2 | Voltage - Supply | 1.71 → 3.6 V |
| Resolution (Bits) | 16 bit | Analog Input:Output | 1（1 x 16 位），1（16 x 16 位） |
| Program Memory Size | 128 kB | Program Memory Type | Flash |
| Number of ADCs / DACs | 17 | Number of Counter/Timers | 2 Timer |
| Voltage - Supply, Analog | 3.3 V | ||
Mechanical
| Width | 7mm | Height | 1mm |
| Length | 7mm | Packaging | Tray |
| Mounting Type | 表面贴装 | Connector Type | 3 |
| Mounting Style | SMD/SMT | Number of Pins | 48 |
| Package / Case | QFN-48 | Package Quantity | QFN |
| Size / Dimension | 7 x 7 x 1mm | Number of Contacts | 2 |
| Number of Cores/Bus Width | 32Bit | Pulse Width Distortion (Max) | 1 (2)-四路解码器，1 (8)-电动机控制 |
Product Info
| Series | Kinetis K1x | Function | Y |
| Manufacturer | NXP / Freescale | Pattern Type | ARM |
| Number of Inputs and Type | 33 I/O | ||
Environmental
| Operating Temperature | +105 °C | ||
