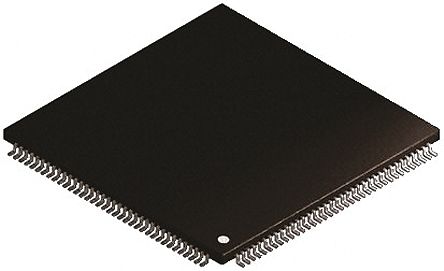

点击放大查看
MK20DX256ZVLQ10
| Manufacturer | |
| Description | IC MCU 32BIT 256KB FLASH 144LQFP NXP Kinetis K2x 系列 32 bit ARM Cortex M4 MCU, 100MHz, 256 kB ROM 闪存, 64 kB RAM, 1xUSB, 144针 LQFP封装 ARM Microcontrollers - MCU KINETIS 256KFLEX USB |
| Category |
Business
| Factory Pack Quantity | 300 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Timer | 3 (12) | Core Type | ARM Cortex M4 |
| Clock Rate | 100 MHz | Resolution | 16Bit |
| Memory Size | 64 kB | Memory Type | 闪存 |
| PWM Channel | 8 | Number of I/O | 2 |
| Voltage - I/O | 3.3 V | Counter/Timers | 3 |
| FPGA Core Cells | ARM Cortex M4 | Frequency - Max | 100MHz |
| Number of DAC's | 1 | Voltage - Supply | 1.71 → 3.6 V |
| Number of Channels | 2 | Analog Input:Output | 4-ch x 16-bit, 42-ch x 16-bit |
| Program Memory Size | 256 kB | Number of ADCs / DACs | 46 |
| Voltage - Supply, Analog | 3.3 V | ||
Mechanical
| Width | 20mm | Height | 1.4mm |
| Length | 20mm | Packaging | Tray |
| Mounting Type | 表面贴装 | Connector Type | 6 |
| Mounting Style | SMD/SMT | Number of Pins | 144 |
| Package / Case | LQFP-144 | Package Quantity | LQFP |
| Size / Dimension | 20 x 20 x 1.4mm | Number of Contacts | 2 |
| Number of Cores/Bus Width | 32Bit | Pulse Width Distortion (Max) | 1 (8) |
Product Info
| USB | 1 | Series | Kinetis K2x |
| Function | Y | Manufacturer | NXP / Freescale |
| Pattern Type | ARM | ||
Environmental
| Operating Temperature | +105 °C | ||
Documents & Media
