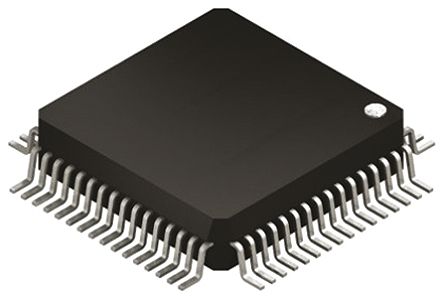

MK30DX128VLH7
| Manufacturer | |
| Description | IC MCU 32BIT 128KB FLASH 64LQFP NXP Kinetis K3x 系列 32 bit ARM Cortex M4 MCU, 72MHz, 160 kB ROM 闪存, 34 kB RAM, LQFP, 1, 64针 LQFP封装 ARM Microcontrollers - MCU Kinetis 128K Flex |
| Category |
对参数有疑问？问 AI 助手
Business
| Factory Pack Quantity | 160 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Timer | 1 FTM 外部时钟、1 低功率定时器 | Core Type | ARM Cortex M4 |
| Clock Rate | 72 MHz | Resolution | 16 |
| Memory Size | 34 kB | Memory Type | 闪存 |
| PWM Channel | 10 | Number of I/O | 2 |
| Voltage - I/O | 3.3 V | Counter/Timers | 2 |
| FPGA Core Cells | ARM Cortex M4 | Frequency - Max | 72MHz |
| Number of DAC's | 3 | Voltage - Supply | 1.71 → 3.6 V |
| Number of Channels | 1 | Analog Input:Output | 22 通道 x 16 位、2 通道 x 16 位 |
| Program Memory Size | 160 kB | Number of ADCs / DACs | 2 |
| Voltage - Supply, Analog | 3.3 V | ||
Mechanical
| Width | 10mm | Height | 1.6mm |
| Length | 10mm | Packaging | Tray |
| Mounting Type | 表面贴装 | Connector Type | 3 |
| Mounting Style | SMD/SMT | Number of Pins | LQFP, 1, 64 |
| Package / Case | LQFP-64 | Package Quantity | LQFP |
| Size / Dimension | 10 x 10 x 1.6mm | Number of Contacts | 2 |
| Number of Cores/Bus Width | 32Bit | Pulse Width Distortion (Max) | 1 (8)-电动机控制，2 (2)-四路解码器 |
Product Info
| Series | Kinetis K3x | Function | Y |
| Manufacturer | NXP / Freescale | Pattern Type | ARM |
Environmental
| Operating Temperature | +105 °C | ||
