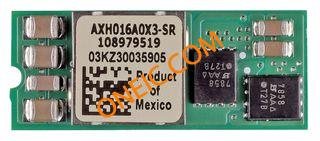

AXH016A0X3-SRZ
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Non-Isolated / POL | Other Names | 555-1067-1 |
| Part # Aliases | 108995180 | Product Category | DC/DC Converters |
| Standard Package | Tape & Reel, Cut Tape | Factory Pack Quantity | 250 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85044030 |
| Approval Agency | :CSA, UL, VDE | ||
Electrical
| Efficiency | 95% | Output Type | Non-Isolated |
| Power - Max | 58W | Output Power | 58 W |
| Converter Type | :Non Isolated POL | Voltage Rating | 0.75 to 3.63 V |
| Current - Output | 16 A | Number of Outputs | 1 |
| Power (Watts) - Max | 58W | Switching Regulator | Yes |
| Voltage - Input (Min) | 3 V to 5.5 V | Voltage - Output (Max) | :5.5V |
| DC Voltage - Input (Max) | :5.5V | Current - Output / Channel | 16 A |
| Voltage - Output (Min/Fixed) | :0.75V | ||
Mechanical
| Weight | 0.01 | Packaging | Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 6SMT | Size / Dimension | 1.30" L x 0.53" W x 0.33" H (33.0mm x 13.5mm x 8.3mm) |
Product Info
| Type | Step Down | Series | Austin SuperLynx |
| Features | Remote On/Off, OCP, OTP, UVLO | ||
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | -40°C ~ 85°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- superlynx_smt_3v-5.5v.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
