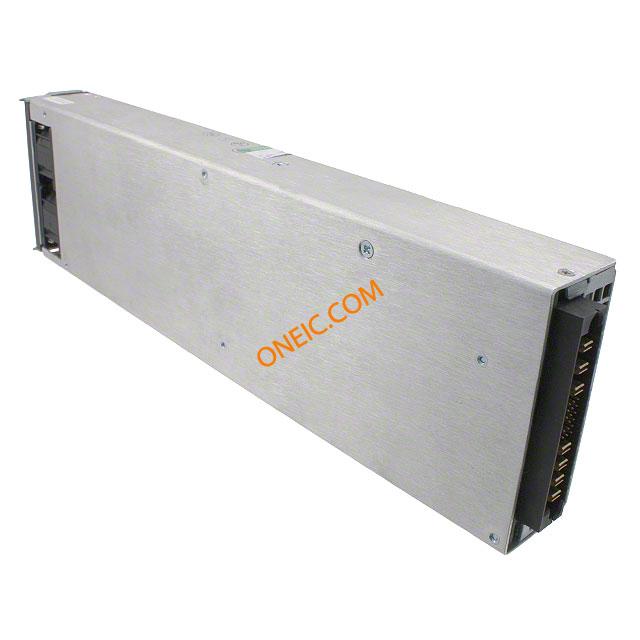

CAR2548FPBC-Z01A
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency | CE, CSA, EN, IEC, UL |
Electrical
| Efficiency | 92% | Power (Watts) | 2500W |
| Line Regulation | ±2% | Load Regulation | ±2% |
| Current - Output | 48 VDC @ 52A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 2500W |
| Voltage - Isolation | 3kV (3000V) | Minimum Load Required | No |
| Voltage - Input (Min) | 48V | ||
Mechanical
| Mounting Type | Rack Mount | Size / Dimension | 14.25" L x 4.00" W x 1.61" H (362.0mm x 101.6mm x 40.9mm) |
Product Info
| Type | Standard Product | Features | Adjustable Output, Hot Swappable, I²C™ Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input |
| Applications | Commercial | ||
Environmental
| Operating Temperature | -10°C ~ 70°C | ||
