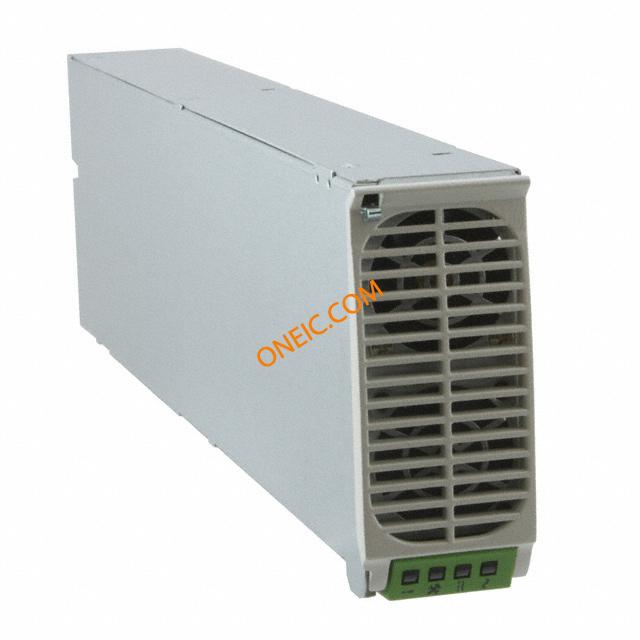

CP2725AC54TEP
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Linear and Switching Power Supplies | Standard Package | 1 |
Compliance
| RoHS | No | Tariff No | 85044030 |
| Approval Agency | CE, CSA, IEC, UL, VDE | ||
Electrical
| Input | AC | Output | 48.0V @ 57.00A |
| Frequency | 47 Hz to 66 Hz | Efficiency | 96% |
| Output Type | :Fixed | Power - Max | :2.725kW |
| Output Power | 2.7 kW | Power (Watts) | 2725W |
| Power - Rated | :2.725kW | Voltage Rating | 90 VAC to 305 VAC |
| Power - Cooling | Internal variable speed fan | Current - Output | 5 VDC @ 750mA |
| Number of Outputs | 2 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 2725W | Voltage - Input (Min) | 54V, 5V |
| Current - Output / Channel | 25 A | ||
Mechanical
| Size | 13.85 x 4.00 x 1.63" | Width | 4 in |
| Height | 1.63 in | Length | 13.85 in |
| Weight | 2.27 | Mounting Type | Rack Mount |
| Mounting Style | Rack | Panel Mount Type | Enclosed |
| Size / Dimension | 13.85" L x 4.00" W x 1.63" H (351.2mm x 101.6mm x 41.4mm) | ||
Product Info
| Type | Standard Product | Series | CP2725 |
| Application | Commercial | Applications | Commercial |
| Stock Status | Please Call | ||
Environmental
| Operating Temperature | -40°C ~ 55°C | ||
