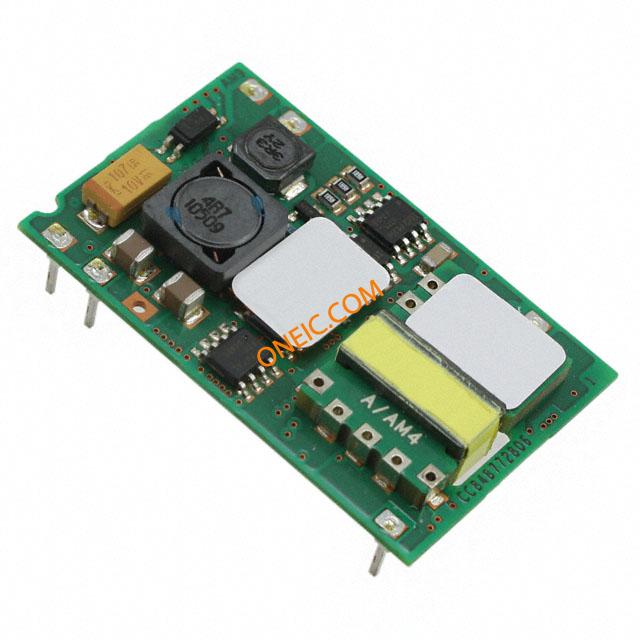

HW004A0A1Z
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Part # Aliases | CC109102002 |
| Product Category | DC/DC Converters | Standard Package | 48 |
| Factory Pack Quantity | 48 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85044030 |
| Approval Agency | :CSA C22.2 No. 60950-1-03, EN 60950-1, UL 60950-1 | ||
Electrical
| Efficiency | 89% | Output Type | Isolated |
| Power - Max | 20W | Output Power | 20 W |
| Converter Type | :Isolated POL | Voltage Rating | :5V |
| Current - Output | 4A | Number of Outputs | 1 |
| Power (Watts) - Max | 20W | Voltage - Isolation | 1.5 kV |
| Voltage - Input (Min) | 36 V to 75 V | DC Voltage - Input (Max) | :75V |
| Current - Output / Channel | 4 A | ||
Mechanical
| Depth | :47.2mm | Width | :29.5mm |
| Height | :8.5mm | Weight | 0.013 |
| Packaging | Bulk | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | DIP |
| Size / Dimension | 1.86" L x 1.16" W x 0.34" H (47.2mm x 29.5mm x 8.5mm) | ||
Product Info
| Type | Isolated Module | Series | HW004 |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- 1511378.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
