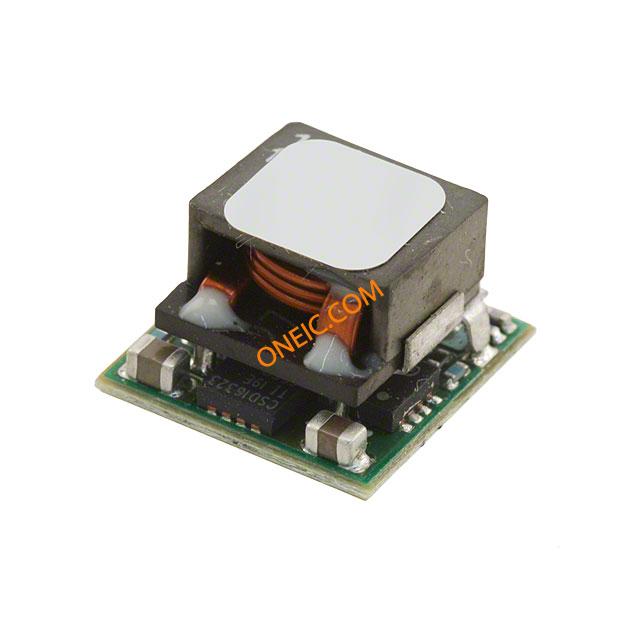

PDT012A0X3-SRZ
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Non-Isolated / POL | Other Names | 555-1201-1 |
| Part # Aliases | CC109159661 | Product Category | DC/DC Converters |
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Input | 3.0-14.4VDC | Output | 0.5V @ 12.00A |
| Efficiency | 95.4% | Power - Max | 66W |
| Output Power | 66 W | Power - Rated | 12 Amp |
| Voltage Rating | 0.45 to 5.5 V | Voltage - Input | 12 V |
| Current - Output | 12 A | Number of Outputs | 1 |
| Power (Watts) - Max | 66W | Voltage - Input (Min) | 3 V to 14.4 V |
| Current - Output / Channel | 12 A | ||
Mechanical
| Size | 0.48 x 0.48 x 0.34 | Packaging | Reel |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 12.2 mm x 12.2 mm 8.5 mm | Size / Dimension | 0.48" L x 0.48" W x 0.34" H (12.2mm x 12.2mm x 8.5mm) |
Product Info
| Type | Non-Inverting|Inverting|Step Up|Step Down | Series | DLynx |
| Features | Remote On/Off, OCP, OTP, UVLO | Stock Status | Please Call |
Environmental
| Mechanical Life | New Technology: Cutting edge technology for the newest designs. | Operating Temperature | - 40 C to + 85 C |
