GA08JT17-247
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 30 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85412900 |
Electrical
| FET Type | Silicon Carbide, Normally Off | Fall Time | 50 ns |
| FET Feature | Super Junction | Power - Max | 16W |
| Power - Rated | 91 W | Rise Time (Typ) | 28 ns |
| Transistor Type | :JFET | Delay to 1st Tap | 73 ns |
| Rds On (Max) @ Id, Vgs | 250 mOhm @ 8A | Power Dissipation (Max) | :16W |
| Drain to Source Voltage (Vdss) | 1700V (1.7kV) | Current - Drain (Idss) @ Vds (Vgs=0) | 4 A |
| Current - Continuous Drain (Id) @ 25degC | 8A (Tc) (90°C) | ||
Mechanical
| Weight | 0 | Packaging | Tube |
| Mounting Type | Through Hole | Mounting Style | Through Hole |

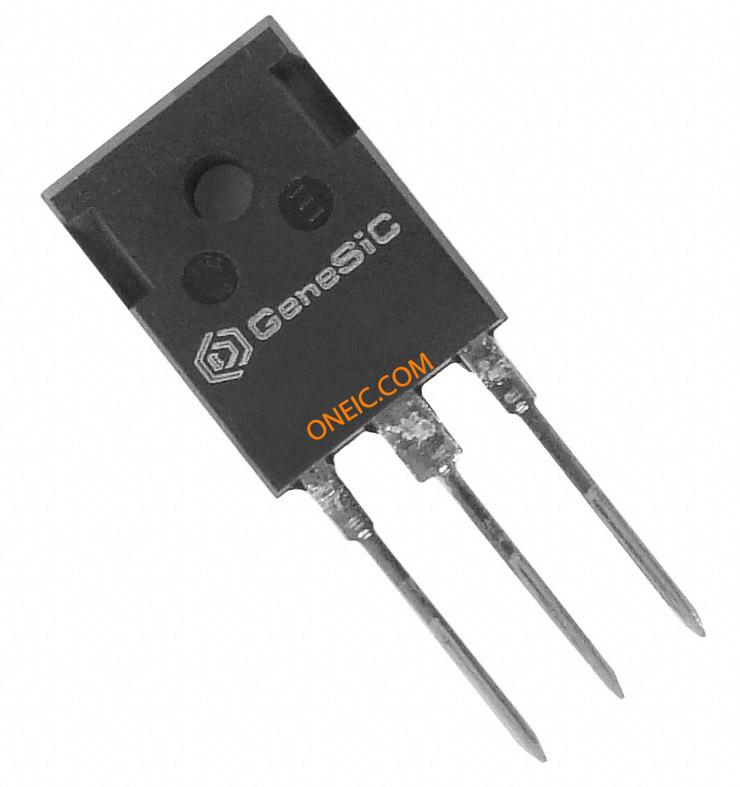

| Number of Pins | :3 | Package / Case | TO-247-3 |
| Material Finish | :- | Supplier Device Package | TO-247AB |
Product Info
| Configuration | Single | ||
Environmental
| Operating Temperature | - 55 C | ||
