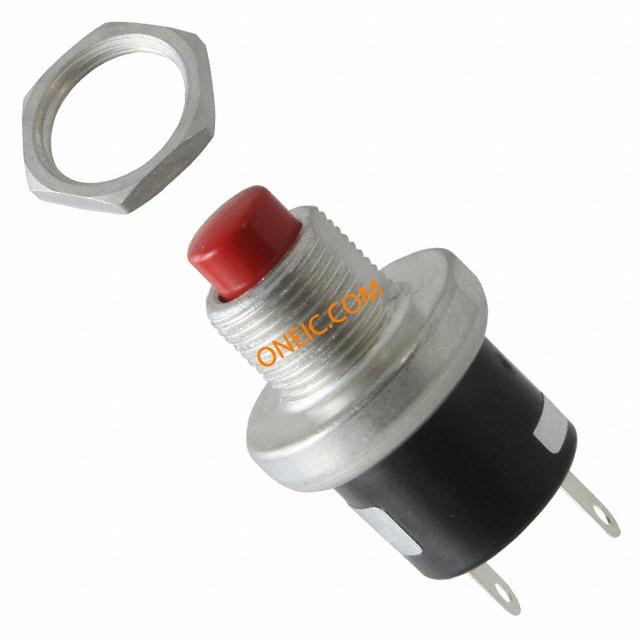

点击放大查看
10-100
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 72 Days | Other Names | GH7514 |
| Subcategory | Switch Push Button | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 00000000 | ||
Electrical
| Circuit | SPST-NO | Voltage - Core | :220V |
| Voltage Rating | 115V | Switch Function | Off-Mom |
| Current Rating (Max) | 1@115VAC A | Current - Max/Contact | :1A |
| Voltage - Input (Min) | 220 V | Switch Function/Rating | N.O. |
| Voltage - Rated AC (Phase to Ground/Neutral) | :220V | ||
Mechanical
| Depth | 20.32 | Height | 38.1 |
| Weight | 0.009 | Packaging | Bulk |
| Actuator Type | Round, Plunger | Mounting Type | Panel Mount |
| Terminal Type | Solder Lug | Contact Finish | Silver |
| Contact Material | Beryllium Copper | Length - Overall | 20.32 |
| Actuator Material | Thermoset Plastic | Termination Style | Solder Lug |
| Actuator Style/Size | Round Button | Color - Actuator/Cap | Red |
| Switch Actuation Level | SPST | Contact Layout, Typical | :SPST-NO |
| Material - Housing & Prism | Thermoset Plastic/N/A | ||
Product Info
| Type | Standard | Series | 10 |
| Features | Tactile Feedback | Function | Momentary Contact |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- Push_10_4000.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
