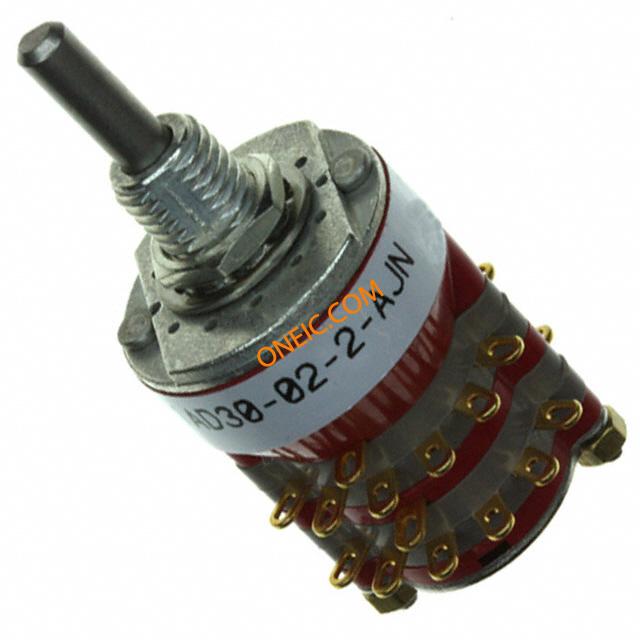

71AD30-02-2-AJN
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 30 V | Current Rating (Max) | 0.3@115VAC A |
| Voltage - Input (Min) | 115 V | Contact Rating @ Voltage | 0.25A @ 28VDC |
Mechanical
| Depth | 19.05 | Height | 42.32 |
| Orientation | Vertical | Actuator Type | Flatted (3.17mm dia) |
| Mounting Type | Panel Mount | Terminal Type | Solder Lug |
| Angle of Throw | 30° | Contact Material | Silver Alloy/Beryllium Copper |
| Length - Overall | 19.05 | Actuator Material | Stainless Steel |
| Termination Style | Solder Lug | Actuator Style/Size | Flatted Shaft |
| Number of Positions | 2 ~ 6 | Switch Actuation Level | DP |
| Number of Poles per Deck | 2 | Material - Housing & Prism | Diallyl/N/A |
Product Info
| Electrical Life | 25000(Max) | Number of Decks | 2 |
| Circuit per Deck | DP6T | ||
Documents & Media
Similar Parts
Sourcing & traceability
- Datasheet
- Rotary_71.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
