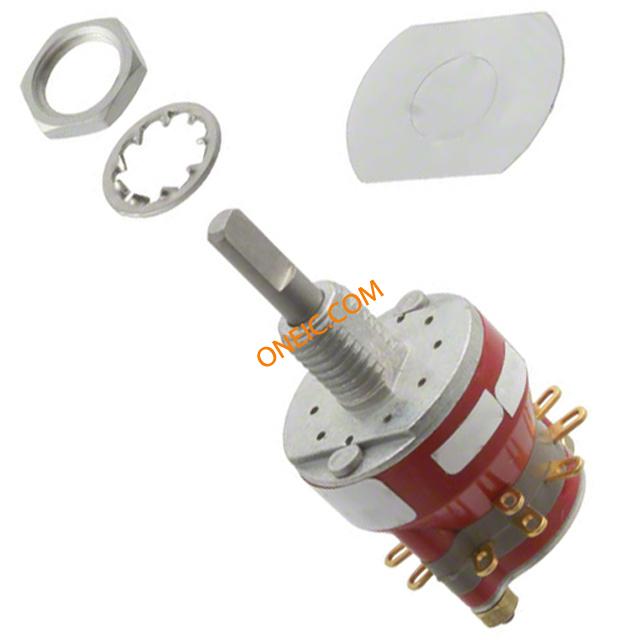

71AD36-01-2-AJN
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 30 V | Current Rating (Max) | 0.3@115VAC A |
| Voltage - Input (Min) | 115 V | Contact Rating @ Voltage | 0.25A @ 28VDC |
Mechanical
| Orientation | Vertical | Actuator Type | Flatted (3.17mm dia) |
| Mounting Type | Panel Mount | Terminal Type | Solder Lug |
| Angle of Throw | 36° | Contact Material | Silver Alloy/Beryllium Copper |
| Termination Style | Solder Lug | Number of Positions | 2 ~ 5 |
| Switch Actuation Level | DP | Number of Poles per Deck | 2 |
Product Info
| Number of Decks | 1 | Circuit per Deck | DP5T |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- Rotary_71.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
