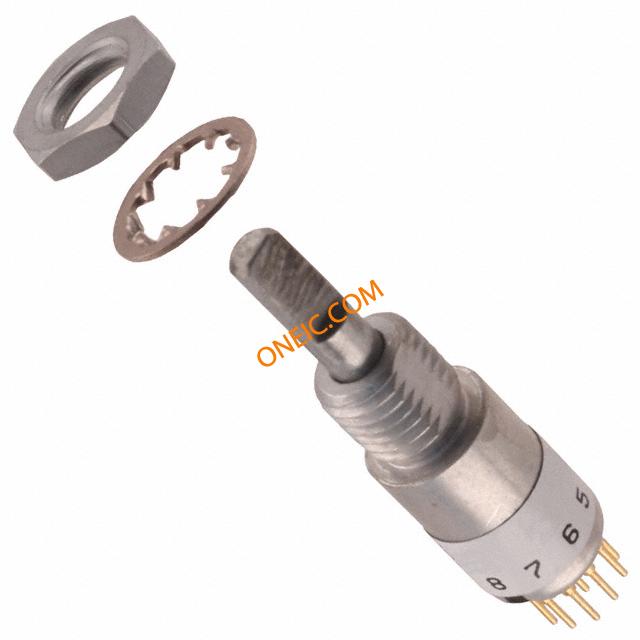

75BP36-01-1-04N
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 30 V | Number of Poles | 1 |
| Current Rating (Max) | 0.2 A | Voltage - Input (Min) | 220 V |
| Contact Rating @ Voltage | 0.2A @ 28VDC | ||
Mechanical
| Orientation | Vertical | Actuator Type | Flatted (3.17mm dia) |
| Mounting Type | Through Hole | Terminal Type | PC Pins |
| Angle of Throw | 36° | Contact Material | Silver Cadmium Oxide |
| Termination Style | PC Pin | Number of Positions | 4 |
| Switch Actuation Level | SP4T | Number of Poles per Deck | 1 |
Product Info
| Type | Rotary | Number of Decks | 1 |
| Circuit per Deck | SP4T | ||
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- Rotary_75.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
