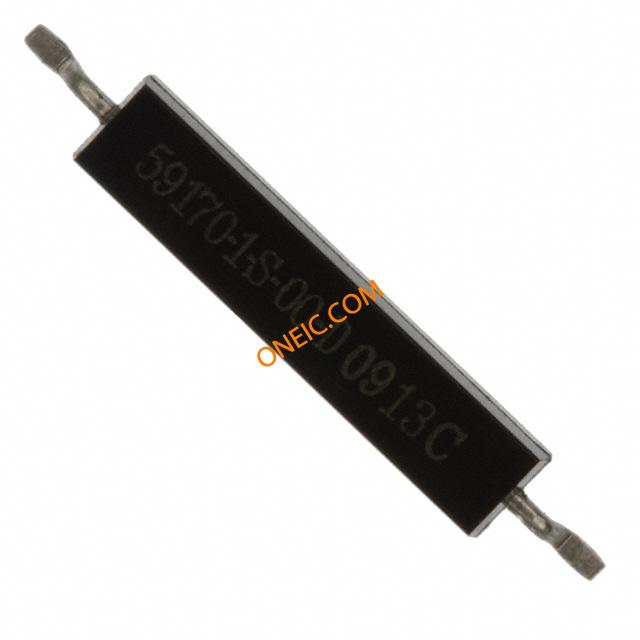

59170-1-S-00-D
| Manufacturer | |
| Description | Switch Reed N.O. 0.5A 200VDC 10VA 1ms 100mOhm SWITCH REED SPST 10-15AT 200V Proximity Sensors Reed Sensors Reed Sensor Contact Configuration : 1A SPST-NO Carry Current : 0.8 Amps Max Switching Voltage : 200 VDC Activate Distance: .295" (7.5mm) Termination: SMD Gull Wing Reed Switch AT 10-15 Leaded |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | HE549CT | Standard Package | 1,500 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Circuit | SPST-NO | Power - Max | 10W |
| Sensitivity | 10~15 AT | Release Time | 0.5 |
| Power - Rated | 10 | Voltage Rating | 200 |
| Current - Carry | 0.8 Amps | Current - Output | 0.5 A |
| Sensing Distance | 7.5 mm | Voltage - Supply | 200 V |
| Switching Voltage | 200V | Contact Resistance | 0.1Ω |
| Current - Switching | 500mA | Current Rating (Max) | 0.5 |
| Switch Function/Rating | N.O. | Voltage - Switching DC | 200 VDC |
| Power - Average Forward | 10W | Voltage - Supply Span (Max) | 200V |
| Current - Peak Pulse (10/1000us) | 500mA | ||
Mechanical
| Width | 2.29mm | Length | 11.43mm |
| Packaging | Tape and Reel | Termination | SMD Gull Wing |
| Contact Form | Form A | Mounting Type | Surface Mount |
| Terminal Type | Gull Wing | Mounting Style | Through Hole |

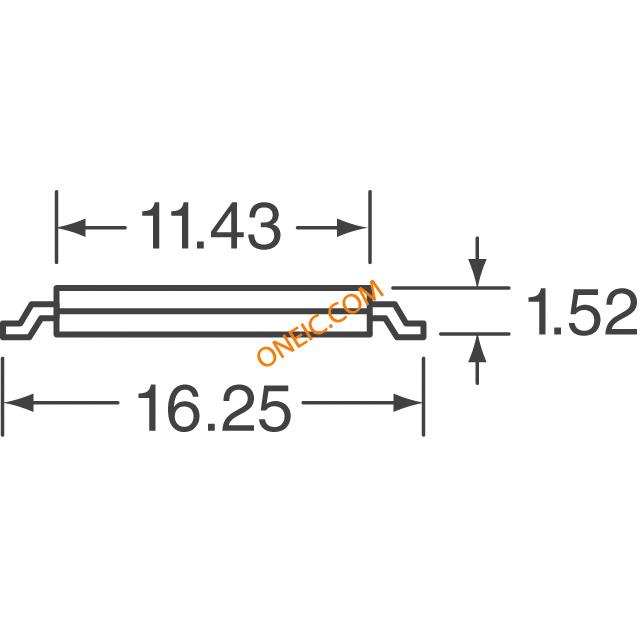

| Length - Overall | 16.25 | Size / Dimension | 2.29 (Dia.) x 11.43mm |
| Material - Magnet | Specified, Not Included | Termination Style | Gull Wing |
| Contact Layout, Typical | 1A SPST-NO | ||
Product Info
| Type | Molded Body | Series | 59170 |
| Circuit Type | SPST-NO | Card Standard | Reed Sensor |
| Accessory Type | Specified, Not Included | Sensing Method | Magnetic |
| Other Specifications | .295" (7.5mm) | Output Configuration | NO |
Environmental
| Must Operate | 10 ~ 15AT | Operating Temperature | + 125 C |
