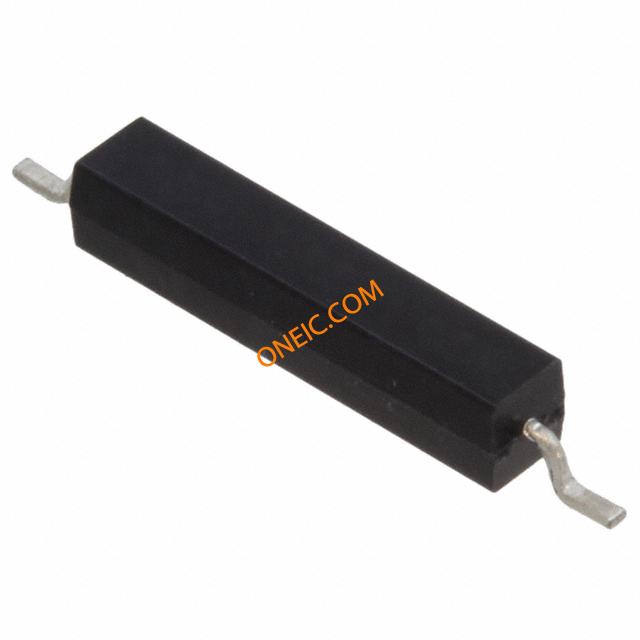

59170-1-T-00-D
| Manufacturer | |
| Description | Switch Reed N.O. 0.5A 200VDC 10VA 1ms 100mOhm SWITCH REED SPST 15-20AT 200V Proximity Sensors Reed Sensors Reed Sensor Contact Configuration : 1A SPST-NO Carry Current : 0.8 Amps Max Switching Voltage : 200 VDC Activate Distance: .256" (6.5mm) Termination: SMD Gull Wing |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | HE551CT | Standard Package | 1,500 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Supplier Unconfirmed |
Electrical
| Circuit | SPST-NO | Sensitivity | 15~20 AT |
| Release Time | 0.5 | Power - Rated | 10 |
| Voltage Rating | 200 | Current - Carry | 0.8 Amps |
| Current - Output | 500 mA | Sensing Distance | 6.5 mm |
| Voltage - Supply | 200 V | Switching Voltage | 200V |
| Contact Resistance | 100 | Current - Switching | 500mA |
| Current Rating (Max) | 0.5 | Switch Function/Rating | N.O. |
| Voltage - Switching DC | 200 VDC | Power - Average Forward | 10W |
Mechanical
| Packaging | Tape and Reel | Termination | SMD Gull Wing |
| Contact Form | Form A | Mounting Type | Surface Mount |
| Terminal Type | Gull Wing | Mounting Style | Screw |
| Length - Overall | 16.25 | Material - Magnet | Specified, Not Included |
| Termination Style | Gull Wing | Contact Layout, Typical | 1A SPST-NO |
Product Info
| Type | Molded Body | Card Standard | Reed Sensor |
| Sensing Method | Magnetic | Other Specifications | .256" (6.5mm) |
Environmental
| Must Operate | 15 ~ 20AT | Operating Temperature | + 105 C |
