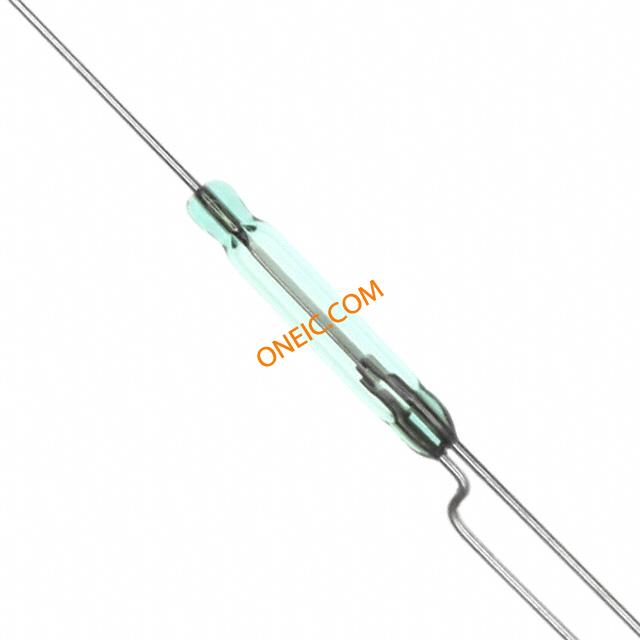

MDRR-DT 15-25 F
| Manufacturer | |
| Description | Switch Reed N.O./N.C. 0.25A 175VDC 5VA 0.7ms 100mOhm SWITCH REED SPDT 15-25 A/T 175V Magnetic / Reed Switches |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPDT | Release Time | 1 |
| Power - Rated | 5 | Voltage Rating | 175 |
| Current - Carry | 1.5 | Switching Voltage | 175V |
| Contact Resistance | 100 | Current - Switching | 250mA |
| Current Rating (Max) | 0.25 | Switch Function/Rating | N.O./N.C. |
| Power - Average Forward | 5W | Contact Rating @ Voltage | 0.25 A |
Mechanical
| Length | 14.73 | Diameter | 2.54 |
| Packaging | Bulk | Contact Form | Form C |
| Mounting Type | Through Hole | Terminal Type | Axial |
| Contact Position | Change Over | Length - Overall | 51.66 |
| Material - Magnet | Not Specified | Termination Style | Axial (3 Leads) |
Product Info
| Type | Glass Body | Switch Type | Miniature Change Over Switch |
Environmental
| Must Operate | 15 ~ 25AT | Operate Range | 15 AT to 25 AT |
| Operating Temperature | 125 | ||
