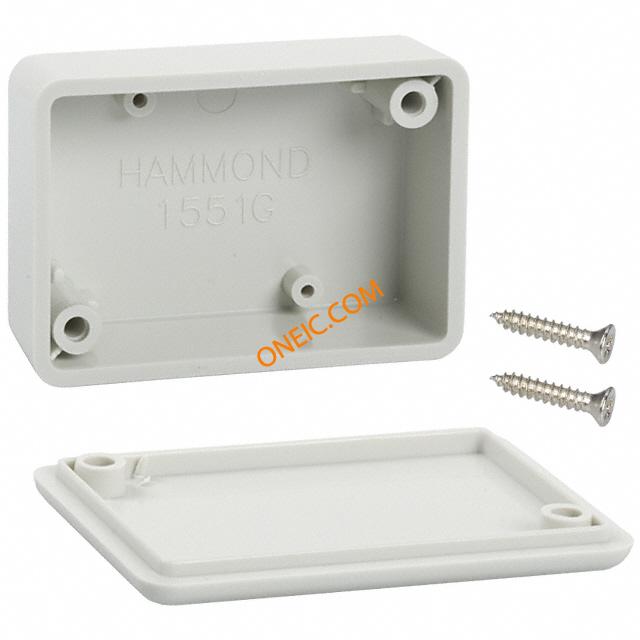

1551GGY
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Instrument Cases | Other Names | HM378 |
| Product Category | Enclosures, Boxes, & Cases | Standard Package | 1 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 39231000 | Material Flammability Rating | UL 94 V-0 |
Mechanical
| Color | Gray | Depth | 1.97 in |
| Width | 35 mm | Finish | SatinTexture |
| Height | 0.787" (19.99mm) | Weight | 0.031 lb (14.06g) |
| Material | Plastic, ABS | Thickness | 0.079" (2.01mm) |
| Body Color | :Grey | Shell Size | 1551 |
| Area (L x W) | 2.71" (17.5cm) | Height (Max) | 17 mm |
| Body Material | ABS | Width (Inches) | :1.38" |
| Width - Inside | 50mm | Depth - Overall | :0.79" |
| Height (Inches) | :1.97" | Material - Body | ABSPlastic |
| Width - Overall | 1.38 in | Length - Overall | 50 mm |
| Package Quantity | 5 | Size / Dimension | 1.969" L x 1.378" W (50.00mm x 35.00mm) |
| Color - Connectors | Grey | Dimensions - Overall | 50 x 35 x 17mm |
| Thread/Screw/Hole Size | Self-Tapping | Supplier Device Package | :Handheld |
| Exterior Housing Material | :Acrylonitrile Butadiene Styrene (ABS) | Material - Housing & Prism | ABS |
| Number of Positions/Bay/Row | 0 | Diameter - Outside, Non-Expanded | 0.79 in |
| Shell Size - Insert (Convert From) | :50mm | ||
Product Info
| Spg | 5 | Type | Hand Held |
| Design | Hand Held, Cover Included | Features | PCB Supports |
| Manufacturer | 1551Series | Configuration | Handheld |
| Shipping Info | Shipped from Digi-Key | Container Type | Box |
| Number of Units | 1 | ||
Environmental
| Ratings | IP54 | Seal Rating | IP54 |
| NEMA Frame Size | :12K | Ingress Protection | IP54 |
Documents & Media
Sourcing & traceability
- Datasheet
- 1551G.dwg
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
