09032246805
| Manufacturer | |

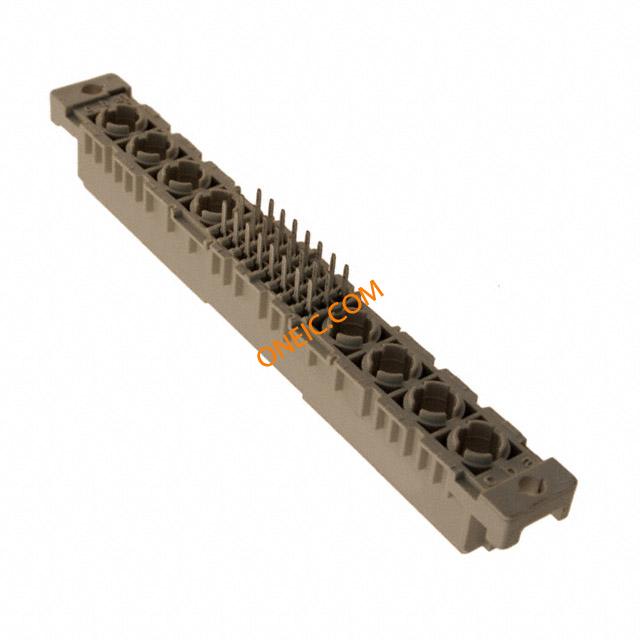

| Description | Conn DIN 41612 F 24/8 POS Solder ST Thru-Hole DIN 41612 Connectors 24+8P 2A FEMALE STRT DIN-SIGNAL M24+8FS-4,5C1-2 24way 8 cavities DIN41612 socket,4-4.5mm DINTypeMStraightsolderpins,0.177longfor0.125PCB(24+8)Female Harting 24 + 8 路 2.54mm 节距, M型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-224-6805 224 6805 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 10.5 | Pitch | 0.100" (2.54mm) |
| Height | 12.6 | Packaging | Bulk |
| Shell Size | M | Orientation | 直 |
| Termination | Solder | Weight (g): | 11.40000 |
| Length - Pin | 4.5mm | Length - Tail | 4.5 mm |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 94.9mm |
| Primary Material | HighCurrent | Termination Rows | 焊接 |
| Pin Hole Diameter | 2.54mm | Termination Style | Solder Pin |
| Number of Contacts | 24/8 | Number of Positions | 32 (24 + 8 Coax, Fiber Optic or Power) |
| Material - Insulation | Thermoplastic, Glass Filled | Mounting Hole Diameter | 0.05" |
Product Info
| Type | DIN 41612 | Style | M |
| Gender | F | Features | Backplane |
| CAD Drawing | 3D CAD Model | Outlet Types and Quantity | A/b/c |
| Number of Positions Loaded | 24 | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
