09032606805
| Manufacturer | |

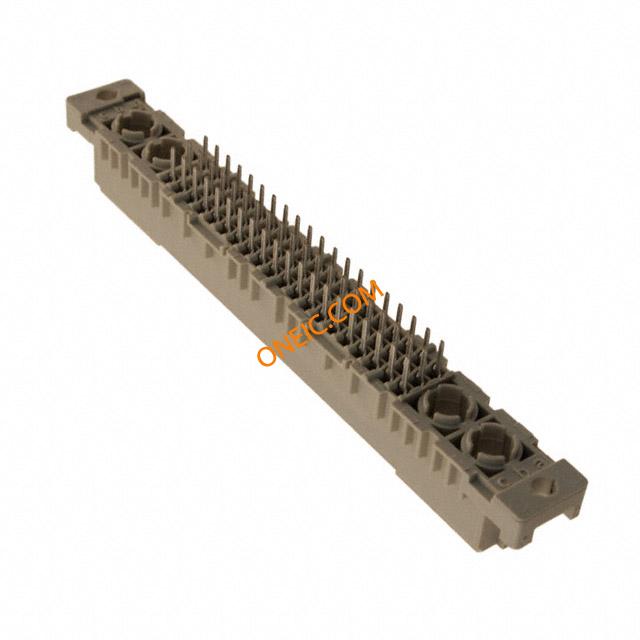

| Description | Conn DIN 41612 F 60/4 POS Solder ST Thru-Hole DIN 41612 Connectors 60+4P 2A FEMALE STRT DIN-SIGNAL M60+4FS-4,5C1-2 60way 4 cavities DIN41612 socket,4-4.5mm DINTypeMStraightsolderpins,0.177longfor0.125PCB(60+4)Female Harting 60 + 4 路 2.54mm 节距, M型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
商业参数
| 零件号别名 | 03 09 09-03-260-6805 260 6805 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | IEC60603-2 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 深度 | 10.5 | 间距 | 0.100" (2.54mm) |
| 高度 | 12.6 | 包装方式 | Bulk |
| 外壳尺寸 | M | 方向 | 直 |
| 端接方式 | Solder | 引脚长度（针脚） | 4.5mm |
| 尾部长度 | 4.5 mm | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 排数 | 3/1 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 94.9mm | 主要材料 | HighCurrent |
| 端接排数 | 焊接 | 插针孔直径 | 2.54mm |
| 端接样式 | Solder Pin | 触点数 | 60/4 |
| 位数 | 64 (60 + 4 Coax, Fiber Optic or Power) | 绝缘材料 - 材质 | Thermoplastic, Glass Filled |
| 安装孔直径 | 0.05" | ||
产品信息
| 类型 | DIN 41612 | 样式 | M |
| 连接器性别 | F | 产品特性 | Backplane |
| CAD图纸 | 3D CAD Model | 插座类型与数量 | A/b/c |
| 加载位置数 | 60 | ||
环境参数
| 额定等级 | C2 | 级别、等级 | 2 |
