09061482901
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 06 09 09-06-148-2901 148 2901 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 125 V ac | Contact Resistance | 15mΩ |
| Current Rating (Max) | 6A | ||
Mechanical
| Depth | 22 | Pitch | 0.200" (5.08mm) |
| Height | 14.7 | Packaging | Bulk |
| Orientation | 直角 | Termination | Solder |
| Length - Tail | 3 mm | Mounting Type | Right Angle |
| Connector Type | Header, Male Pins | Contact Finish | Gold Over Palladium Nickel Over N... |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 93.9 |
| Termination Rows | a/b/c | Termination Style | Solder Pin |
| Number of Contacts | 48 | Number of Positions | 48 (Power) |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | Shrouded Header | Style | F |
| Gender | M | Series | 09 06 |
| Class Code | C1 | CAD Drawing | 3D CAD Model |
| Product Type | Plugs | Outlet Types and Quantity | Z/b/d |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C1 | Level, Class | 1 |
| Operating Temperature | +125°C | ||
Similar Parts

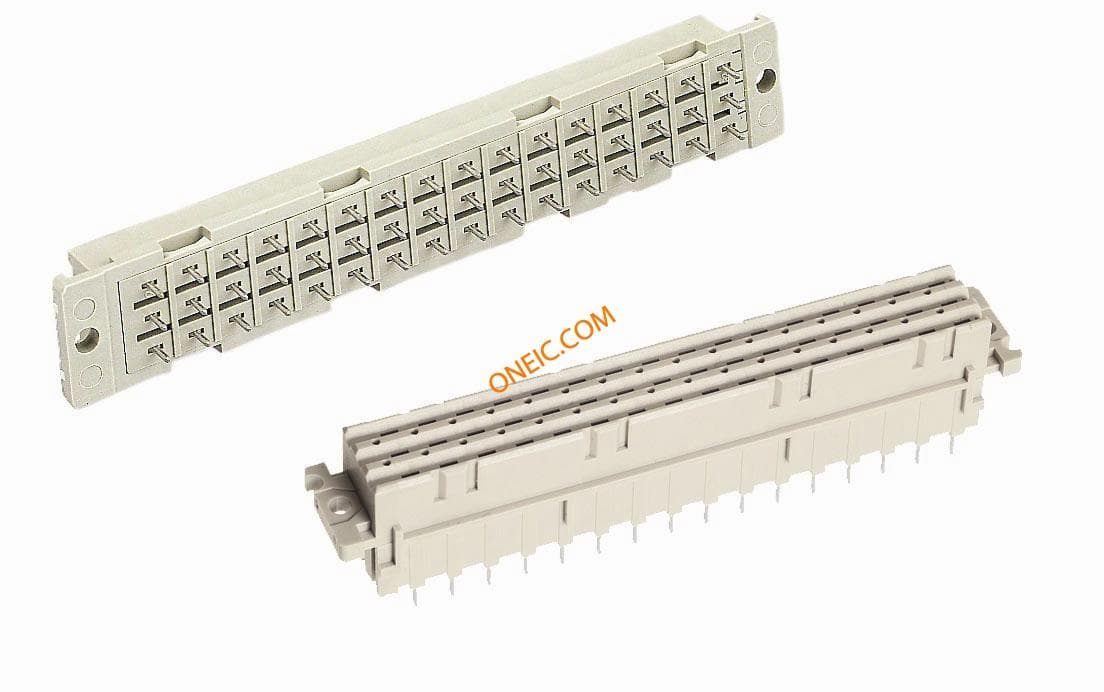

09062486833
Harting Technology Group
$41.4630
Details
09062486836
Harting Technology Group
$196.5200
Details
09062486826
Harting Technology Group
$133.0760
Details
09060009907
Harting Technology Group
$13.9998
Details
09062486848
Harting Technology Group
$44.1320
Details
09060009908
Harting Technology Group
$11.7300
Details

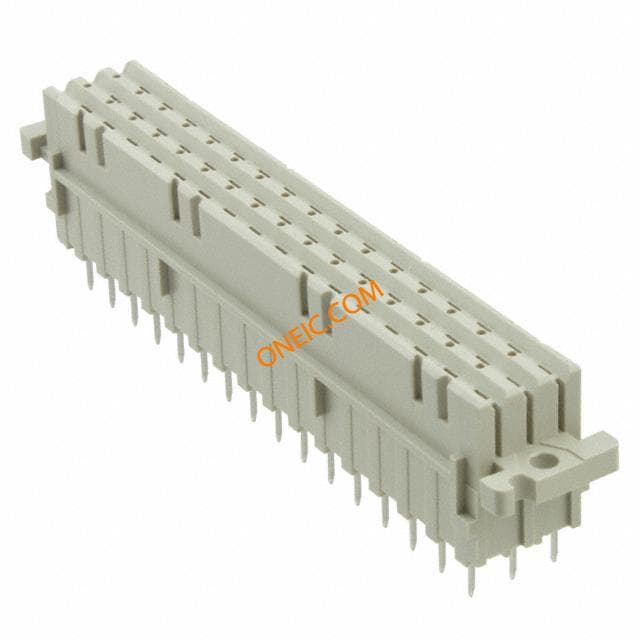

09062486835
Harting Technology Group
$23.7298
Details

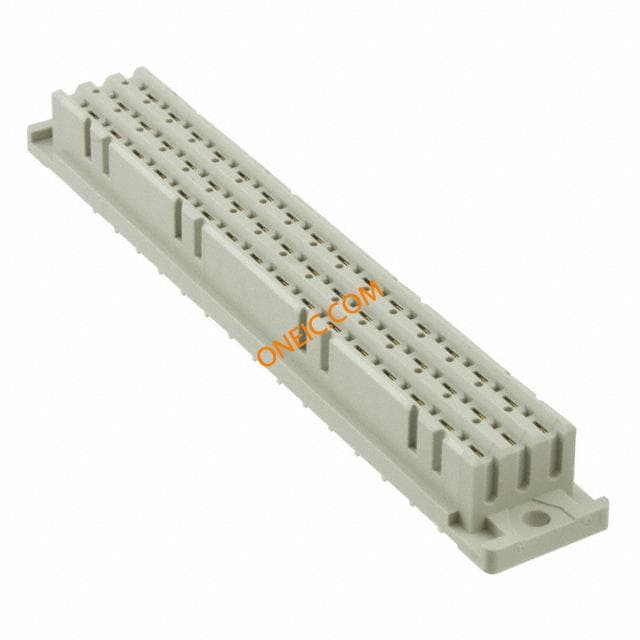

09062486834
Harting Technology Group
$39.6005
Details

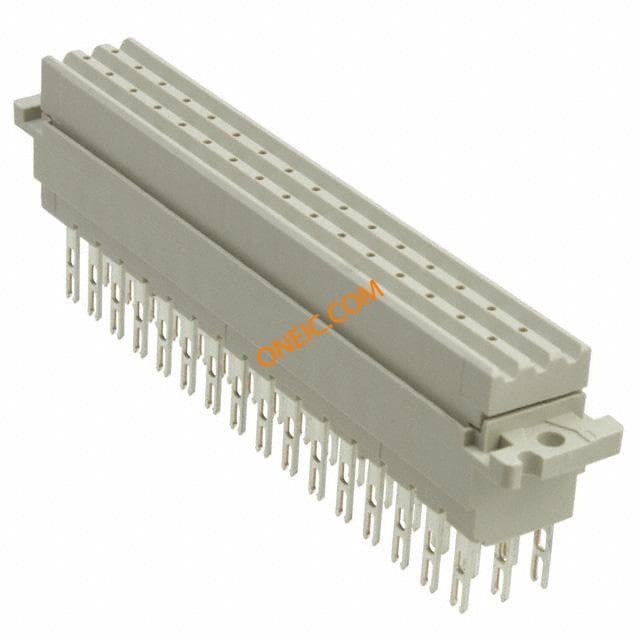

09062486823
Harting Technology Group
$97.3896
Details
09060009909
Harting
$13.9122
Details
09060009910
Harting
$22.0320
Details

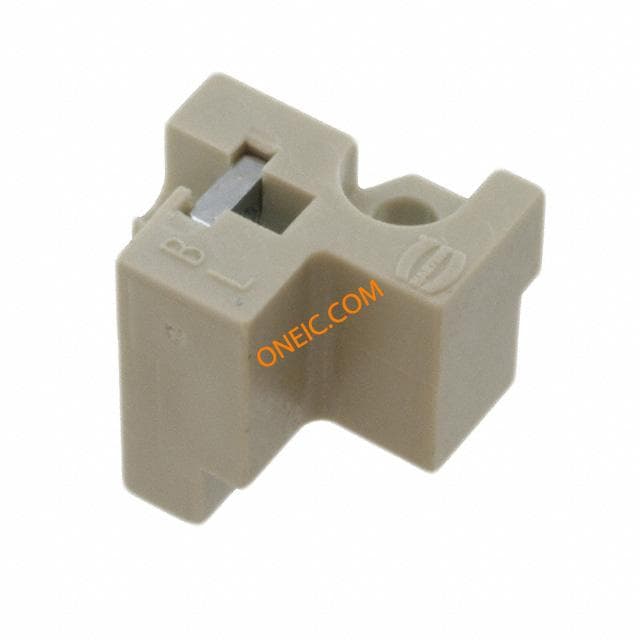

09060009966
Harting
$16.0760
Details

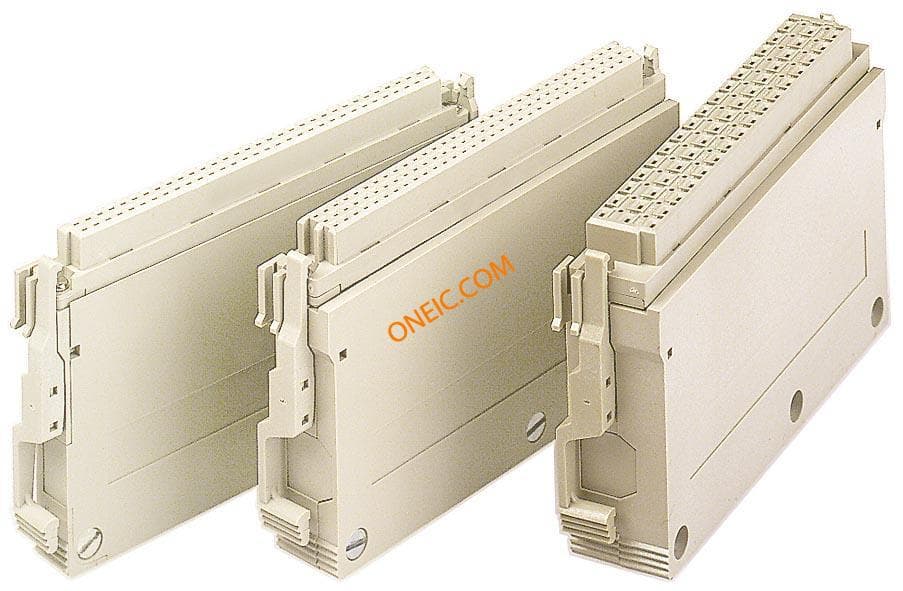

09060009967
Harting
$18.4960
Details

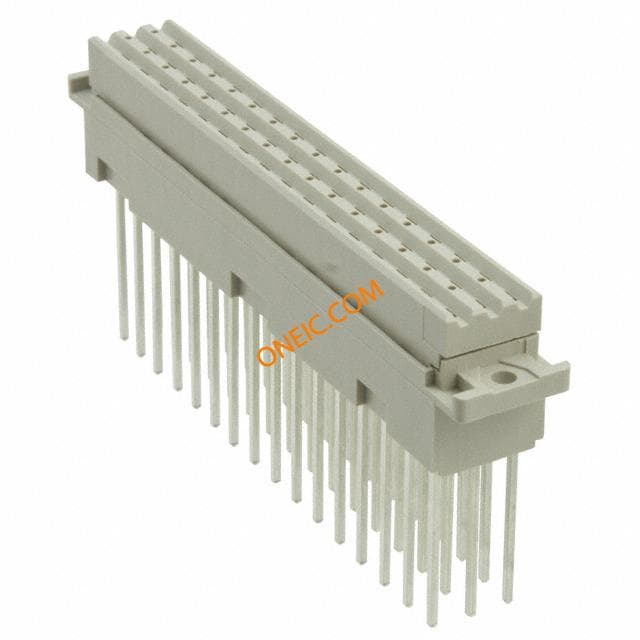

09062486821
