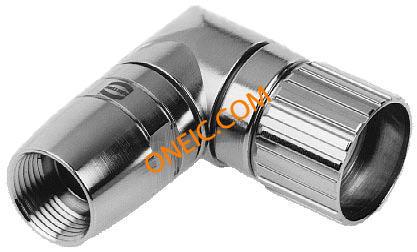

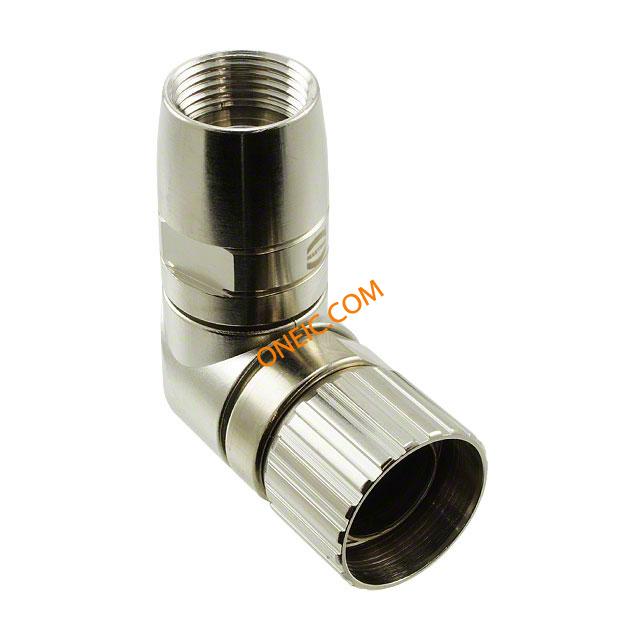

09152000603
| Manufacturer | |
| Description | Connector Accessories Hood 17 POS Right Angle Entry Copper Zinc Alloy Nickel Plating Heavy Duty Power Connectors METAL HOOD RIGHT ANGLE ENTRY CONN HSG INSERT SHELL CABLE RA Han R23 Hoods: Han R23 Hood Right Angled PG 11 Shell R23 for cable angled, 09152000603, HARTING |
| Category |
商业参数
| 零件号别名 | 0603 09 09-15-200-0603 15 200 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 2 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 深度 | 52 | 直径 | 26 |
| 包装方式 | Bulk | 方向 | Keyed |
| 安装类型 | Free Hanging (In-Line), Right Angle | 连接器类型 | Insert Shell |
| 紧固类型 | Threaded | 安装样式 | Right Angle |
| 壳体材料 | Metal | 总长度 | 58 |
| 尺寸/外形 | R23 | 外壳材料及表面处理 | Copper Zinc Alloy, Nickel Plated |
产品信息
| 备注 | Contacts Not Provided | 类型 | Hood |
| 系列 | Han Snap | 描述 | Shell R23 f. cable angled |
| 产品子类型 | Hoods | ||
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | ||
