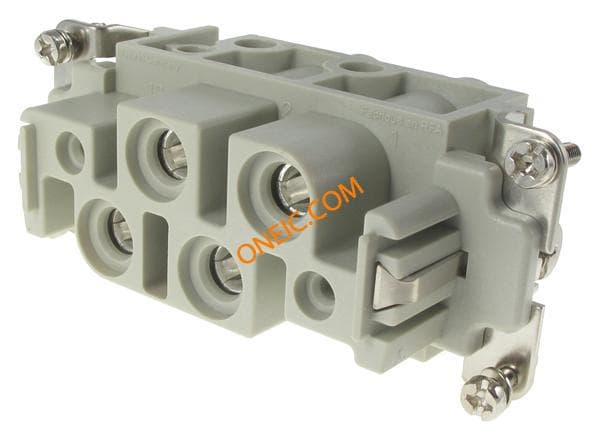

09380062601

点击放大查看

09380062601

Category

Connector SolutionsHeavy Duty ConnectorsHeavy Duty Connectors

对参数有疑问？问 AI 助手

Business

Part # Aliases	006 09 09-38-006-2601 2601 38	Product Category	Heavy Duty Power Connectors
Standard Package	1	Factory Pack Quantity	10

Compliance

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Material Flammability Rating	UL94 V-0

Electrical

Voltage Rating

830 V

Current Rating (Max)

16 A, 80 A

Mechanical

Size	16B	Color	Gray
Depth	42	Height	34
Weight	0.12 kg	Packaging	Bulk
Orientation	直	Weight (g):	120.00000
Mounting Type	Straight	Connector Type	Insert
Contact Finish	Silver	Package / Case	size 16B
Insertion Force	Male	Contact Material	Copper Alloy
Housing Material	Polycarbonate (PC)	Length - Overall	84.5
Package Quantity	1	Size / Dimension	16B
Termination Style	Screw	Number of Contacts	4Power/2Signal
Number of Positions	4+2+Ground	Width / Cross Section	0.5...2.5mm2
Wire Gauge or Range - AWG	20-14

Product Info

Spg	1	Type	Housing
Gender	M	Series	Han Com
CAD Drawing	3D CAD Model	Product Type	Housings
Adapter Series	Han Com	Number of Units	1

Environmental

Operating Temperature

-40°C ~ 125°C
