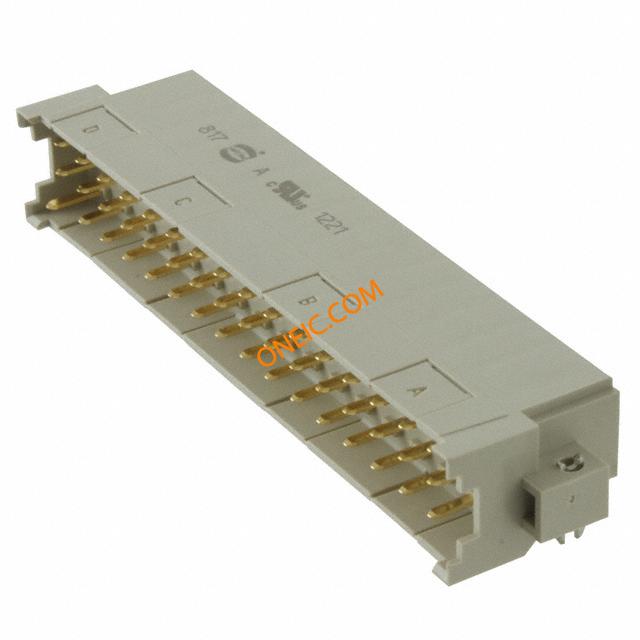

09063486921
| Manufacturer | |
| Description | DIN 41612 Connectors DIN-POWER V1-CLIP F048MS-3,0C1-2 DIN-POWER F048MS-3,0C1-2-V1-CLIP |
| Category |
商业参数
| 零件号别名 | 06 09 09-06-348-6921 348 6921 | 标准包装数量 | 1 |
| 工厂包装数量 | 20 | ||
合规参数
| 材料阻燃等级 | UL94 V-0 | ||
机械参数
| 间距 | 0.200" (5.08mm) | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Male Pins | 接触镀层 | Gold |
| 排数 | 3 | 位数 | 48 (Power) |
| 绝缘材料 - 材质 | Thermoplastic, Glass Filled | 接触镀层厚度 | Flash |
产品信息
| 样式 | F | 产品特性 | Mounting Clips |
| 加载位置数 | All | ||
环境参数
| 级别、等级 | 2 | ||
